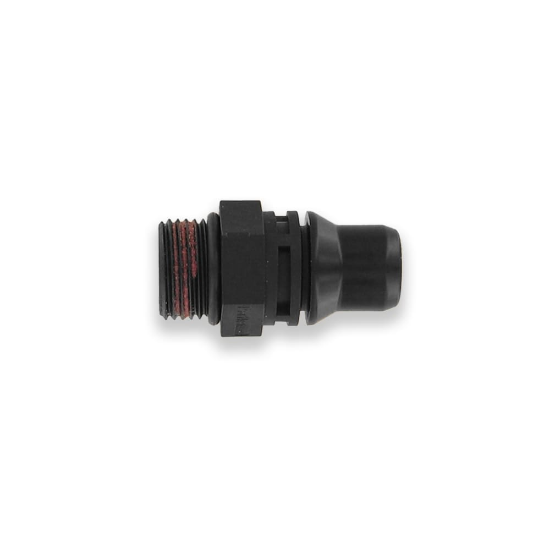

MVDA1205-08 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU MVDA1205-08

$9.91/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Length (inch)	1.75"	Connection 1 Hose Inside Diameter	0.472" (I.D.)
Product Style	MVDA Adapter	Product Style	VDA
Minimum Operating Temperature	-40	Connection 2 Type	Male SAE-ORB
Length	1.75	Connection 1 Size	0.472 inch Hose I.D.
Product Type	Port Adapter	Maximum Operating Pressure	125
Configuration	Port Adapter	Materials of Construction	High Performance Glass Filled Polyamide
Connection 1 Type	Male VDA	Brand	Parker
Product Series	ECH	Application	Fluid Transfer
Fitting Type	Port Adapter	Connection Type	Male VDA to SAE-ORB
Industry	Transportation	Vacuum Pressure Rating	n/a
Shape	Straight	Division	Parflex Division
Seal Material	EPDM (O-Ring)	Connection 2 Thread Size	3/4-16
Connection Size	-8	Size	12
Division	Parflex Division	Connection 2 Size	1/2
Maximum Operating Temperature	212	For Fluid Type	Coolants (Water Based)
