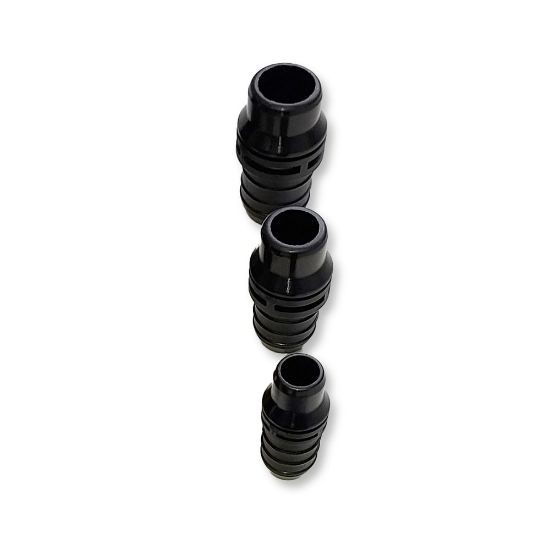

MVDA161800 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU MVDA161800

$6.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Length (inch)	2.20"	Connection 1 Hose Inside Diameter	0.629" (I.D.)
Product Style	MVDA	Product Type	Hose Fitting
Connection Size	n/a	Seal Material	EPDM (O-Ring)
Application	Fluid Transfer	Brand	Parker
Product Style	VDA	Length	2.20
Connection 1 Size	0.629 inch Hose I.D.	Notes	Spigot Size: 0.629" / 16 mm
Minimum Operating Temperature	-40	Vacuum Pressure Rating	n/a
Shape	Straight	Maximum Operating Pressure	125
Materials of Construction	High Performance Glass Filled Polyamide	Product Series	ECH
Configuration	Hose to VDA	For Fluid Type	Coolants (Water Based)
Size	-18	Maximum Operating Temperature	212
Connection Type	Push-to-Connect	Division	Parflex Division
Division	Parflex Division	Fitting Type	Barb / Beaded Barb / Mini Barb
Industry	Transportation
