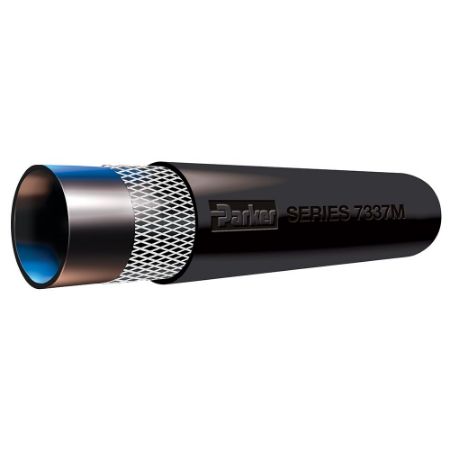

Reinforced Conduit Hose, Series 7337M

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series 7337M Reinforced Conduit Hose provides excellent service as heavy duty, rugged, abrasion resistant protection for cable, hose and tubing. The thick hose wall is extremely durable, and flame retardant to protect operators from fire hazards. The smooth cover enables easy routing, and the hose is available on reels containing long continuous lengths for maximum application and inventory versatility.

Markets:

• General Industrial

• Underground Mining

Features/Benefits:

• Tube: Black synthetic rubber for durable service to 180°F.

• Reinforcement: Multiple textile plies for strength and durability.

• Cover: Black synthetic rubber for resistance to abrasion, cuts, gouging and scuffs.

Applications:

-usage

• Conduit

• Protection for cable, hose, tubing, wiring

Industry Standards:

• MSHA

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Standard Pack Qty (ft)	Hose I.D. (inch)	Cover Material	Cover Structure	Minimum Operating Temperature	Minimum Bend Radius	Media	Outside Diameter	Package Type	Application	Specifications Met	Hose Reinforcement Material	Cover Color	Weight	Inside Diameter	Maximum Operating Pressure	Hose Inner Tube Material	Maximum Operating Temperature	Minimum Operating Pressure	Division
7337M-1002	Backordered	Backordered	$8.27/foot	FT	250	1	Synthetic Rubber	Smooth	-30 °F	n/a	Tubing	1.468 inch	Reel	Specialty	MSHA	2 Plies of Textile	Black	0.52 lb/ft	1 inch	n/a	Black	82 °C	n/a	Hose Products Division
7337M-1002050	Backordered	Backordered	$9.69/foot	FT	50	1	Synthetic Rubber	Smooth	-34 °C	n/a	Tubing	1.468 inch	Carton	Specialty	MSHA	2 Plies of Textile	Black	0.52 lb/ft	25.4 mm	n/a	Black	82 °C	n/a	Hose Products Division
7337M-1132050	Backordered	Backordered	$10.04/foot	FT	50	1-1/8	Synthetic Rubber	Smooth	-34 °C	n/a	Tubing	40.5 mm	Carton	Specialty	MSHA	2 Plies of Textile	Black	0.57 lb/ft	28.6 mm	n/a	Black	82 °C	n/a	Hose Products Division
7337M-1252	Backordered	Backordered	$9.71/foot	FT	250	1-1/4	Synthetic Rubber	Smooth	-34 °C	n/a	Tubing	43.6 mm	Reel	Specialty	MSHA	2 Plies of Textile	Black	0.63 lb/ft	31.8 mm	n/a	Black	82 °C	n/a	Hose Products Division
7337M-1252050	Backordered	Backordered	$11.38/foot	FT	50	1-1/4	Synthetic Rubber	Smooth	-34 °C	n/a	Tubing	43.6 mm	Carton	Specialty	MSHA	2 Plies of Textile	Black	0.94 kg/m	1-1/4 inch	n/a	Synthetic Rubber	180 °F	n/a	Hose Products Division
7337M-502	Backordered	Backordered	$4.77/foot	FT	450	1/2	Synthetic Rubber	Smooth	-30 °F	n/a	Cable Protection	24.6 mm	Reel	Specialty	MSHA	2 Plies of Textile	Black	0.46 kg/m	1/2 inch	n/a	Black	180 °F	n/a	Hose Products Division
7337M-502050	Backordered	Backordered	$5.59/foot	FT	50	1/2	Synthetic Rubber	Smooth	-30 °F	n/a	Tubing	0.968 inch	Carton	Specialty	MSHA	2 Plies of Textile	Black	0.46 kg/m	1/2 inch	n/a	Synthetic Rubber	180 °F	n/a	Hose Products Division
7337M-632	Backordered	Backordered	$5.30/foot	FT	400	5/8	Synthetic Rubber	Smooth	-34 °C	n/a	Tubing	1.093 inch	Reel	Specialty	MSHA	2 Plies of Textile	Black	0.55 kg/m	5/8 inch	n/a	Black	82 °C	n/a	Hose Products Division
7337M-632050	Backordered	Backordered	$6.22/foot	FT	50	5/8	Synthetic Rubber	Smooth	-34 °C	n/a	Cable Protection	1.093 inch	Carton	Specialty	MSHA	2 Plies of Textile	Black	0.55 kg/m	15.9 mm	n/a	Black	82 °C	n/a	Hose Products Division
7337M-752	Backordered	2450 in stock	$7.85/foot	FT	350	3/4	Synthetic Rubber	Smooth	-34 °C	n/a	Tubing	1.211 inch	Reel	Specialty	MSHA	2 Plies of Textile	Black	0.61 kg/m	19.1 mm	n/a	Black	180 °F	n/a	Hose Products Division
7337M-752050	Backordered	Backordered	$7.06/foot	FT	50	3/4	Synthetic Rubber	Smooth	-30 °F	n/a	Cable Protection	30.8 mm	Carton	Specialty	MSHA	2 Plies of Textile	Black	0.61 kg/m	19.1 mm	n/a	Synthetic Rubber	180 °F	n/a	Hose Products Division
