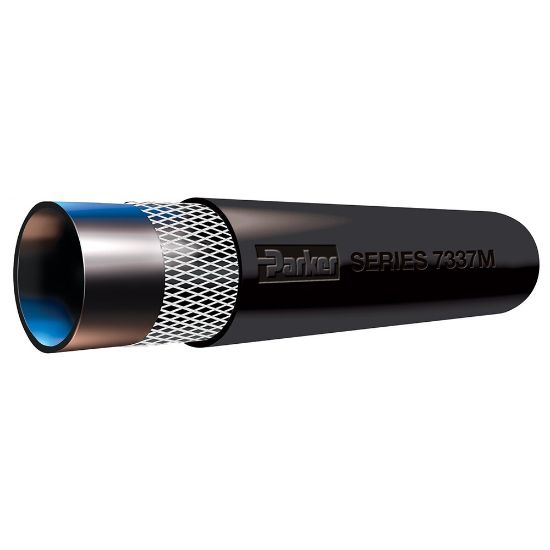

7337M-502 - Reinforced Conduit Hose, Series 7337M

Reinforced Conduit Hose is designed as a durable cable cover to 180°F, Series 7337M

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 7337M-502

$4.77/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Standard Pack Qty (ft)	450	Cover Color	Black
Weight	0.46 kg/m	Hose Inner Tube Material	Black
Minimum Operating Pressure	n/a	Maximum Operating Temperature	180 °F
Division	Hose Products Division	Cover Structure	Smooth
Minimum Bend Radius	n/a	Cover Material	Synthetic Rubber
Hose Reinforcement Material	2 Plies of Textile	Minimum Operating Temperature	-30 °F
Media	Cable Protection	Package Type	Reel
Inside Diameter	1/2 inch	Outside Diameter	24.6 mm
Maximum Operating Pressure	n/a	Application	Specialty
Specifications Met	MSHA

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
