G01098Q - Replacement Elements - 22PD-32PD Series

The replacement elements of the Parker 22PD-32PD high pressure duplex filter series make use of high quality Microglass glasfibre filter materials.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU G01098Q

$310.66/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	Length 2
Filter Element Type	10Q Microglass	Diameter	93 mm
For Use With	32PD Housing	Seal Material	Nitrile
Micron Rating	10 µm	Length	319 mm
Maximum Pressure Differential	20	Division	Hydraulic & Industrial Process Filtration Division EMEA
Filter Element Type	Disposable element	Media	10 Micron Absolute
Collapse Pressure (psi)	290 psi	UOM	EA
Efficiency βx(C) ≥ 200	10 µ	Pkg Qty	1
Collapse Pressure (bar)	20 bar	Media Type	Microglass
Seals	NBR: Nitrile	Collapse Pressure (bar)	20 bar

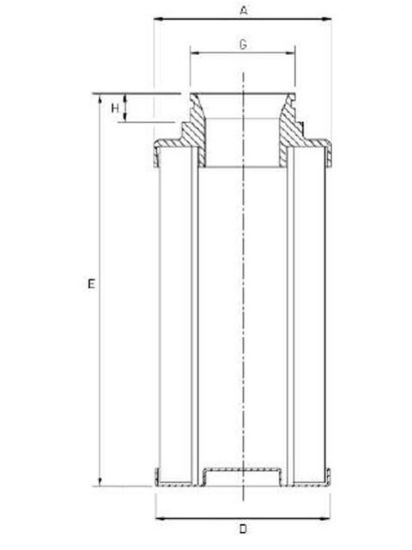

E Dimension	12.579 in (319.5 mm)	Series	ParFit
Glue Side Seam Adhesive	Epoxy	A Dimension	3.76 in (95.5 mm)
I Dimension	0.059 in (1.5 mm)	Parker Division	Hydraulic Filter
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Media	10 Micron Absolute
H Dimension	2.48 in (63 mm)	Parker Group	Filtration
D Dimension	3.76 in (95.5 mm)	Efficiency βx(C) ≥ 200	10 µ
B Dimension	2.48 in (63 mm)	Bottom Endcap Material	Mild steel tin plated
Media Type	Microglass	Top Endcap Material	Glass reinforced nylon
Seals	NBR: Nitrile	Glue Endcaps Adhesive	Epoxy
Inner Support Cylinder Material	Mild steel tin plated	Collapse Pressure (psi)	290 psi
