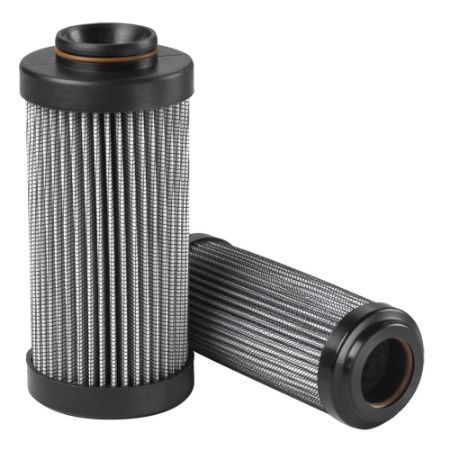

Replacement Elements - High Pressure 15P-30P-30PD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 15P-30P-30P Series is a high pressure filter designed with the latest filtration technology.
Using the Parker 15P-30P-30P Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double lengths and are available with optional levels of high collapse (2000 psid and 3000 psid) several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
Read More...Using the Parker 15P-30P-30P Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double lengths and are available with optional levels of high collapse (2000 psid and 3000 psid) several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Seal Material | Micron Rating | Length | Compatible Series | Division | Product Type | Filter Element Type | For Fluid Type | Diameter | Cartridge Length | Pkg Qty | Seals | Efficiency βx(C) ≥ 200 | Efficiency βx(C) ≥ 1000 | Collapse Pressure (bar) | Collapse Pressure (psi) | Media | Media Type | Parker Group | Parker Division | Operating Temperature | Element Length | Filter Media Code | Series | Seals | Efficiency βx(C) ≥ 1000 | Media Composition Detail | Glue Side Seam Adhesive | Glue Endcaps Adhesive | Media | Media Type | Competitor | Efficiency βx(C) ≥ 200 | Top Endcap Material | Collapse Pressure (bar) | Collapse Pressure (psi) | D Dimension | E Dimension | Bottom Endcap Material | A Dimension | H Dimension | Inner Support Cylinder Material | B Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 932622Q | Backordered | 45 in stock | $134.35/each | EA | EA | Fluorocarbon | 02Q Microglass | single | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 2.44 inch | 124.5 mm | 1 | FKM: Fluorocarbon | 4 µ | 5 µ | 24.1 bar | 350 psi | 2 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 02Q | ParFit | FKM: Fluorocarbon | 5 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 2 Micron Absolute | Microglass | AIRFIL | 4 µ | Glass reinforced nylon | 24.1 bar | 350 psi | 2.441 in (62 mm) | 4.902 in (124.5 mm) | Glass reinforced nylon | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated | ||
| 932623Q | Backordered | 37 in stock | $122.12/each | EA | EA | Fluorocarbon | 05Q Microglass | single | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 2.44 inch | 4.9 inch | 1 | FKM: Fluorocarbon | 5 µ | 7 µ | 24.1 bar | 350 psi | 5 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 05Q | ParFit | FKM: Fluorocarbon | 7 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 5 Micron Absolute | Microglass | AIRFIL | 5 µ | Glass reinforced nylon | 24.1 bar | 350 psi | 2.441 in (62 mm) | 4.902 in (124.5 mm) | Glass reinforced nylon | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated | ||
| 932624Q | 2 Limited Stock | 113 in stock | $87.57/each | EA | EA | Fluorocarbon | 10Q Microglass | single | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 62.0 mm | 4.9 inch | 1 | FKM: Fluorocarbon | 9 µ | 12 µ | 24.1 bar | 350 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 10Q | ParFit | FKM: Fluorocarbon | 12 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 10 Micron Absolute | Microglass | AIRFIL | 9 µ | Glass reinforced nylon | 24.1 bar | 350 psi | 2.441 in (62 mm) | 4.902 in (124.5 mm) | Glass reinforced nylon | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated | ||
| 932625Q | Backordered | Backordered | $226.28/each | EA | EA | Fluorocarbon | 02Q microglass high collapse 2000 psid | single | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 2.44 inch | 124.5 mm | 1 | FKM: Fluorocarbon | 4 µ | 5 µ | 138 bar | 2000 psi | 2 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 02QH | ParFit | FKM: Fluorocarbon | 5 µ | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | Epoxy | Epoxy | 2 Micron Absolute | Microglass | PALL | 4 µ | Steel zinc plated | 138 bar | 2000 psi | 2.441 in (62 mm) | 4.902 in (124.5 mm) | Steel zinc plated | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated (wrapped) | ||
| 932626Q | Backordered | Backordered | $213.93/each | EA | EA | Fluorocarbon | 05Q microglass high collapse 2000 psid | single | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 2.44 inch | 4.9 inch | 1 | FKM: Fluorocarbon | 5 µ | 7 µ | 138 bar | 2000 psi | 5 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 05QH | ParFit | FKM: Fluorocarbon | 7 µ | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | Epoxy | Epoxy | 5 Micron Absolute | Microglass | PALL | 5 µ | Steel zinc plated | 138 bar | 2000 psi | 2.441 in (62 mm) | 4.902 in (124.5 mm) | Steel zinc plated | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated (wrapped) | ||
| 932627Q | Backordered | 9 in stock | $270.80/each | EA | EA | Fluorocarbon | 10Q microglass high collapse 2000 psid | single | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 62.0 mm | 4.9 inch | 1 | FKM: Fluorocarbon | 9 µ | 12 µ | 138 bar | 2000 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 10QH | ParFit | FKM: Fluorocarbon | 12 µ | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | Epoxy | Epoxy | 10 Micron Absolute | Microglass | PALL | 9 µ | Steel zinc plated | 138 bar | 2000 psi | 2.441 in (62 mm) | 4.902 in (124.5 mm) | Steel zinc plated | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated (wrapped) | ||
| 932628Q | Backordered | 15 in stock | $211.32/each | EA | EA | Fluorocarbon | 02Q Microglass | double | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 2.44 inch | 9.2 inch | 1 | FKM: Fluorocarbon | 4 µ | 5 µ | 24.1 bar | 350 psi | 2 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 02Q | ParFit | FKM: Fluorocarbon | 5 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 2 Micron Absolute | Microglass | AIRFIL | 4 µ | Glass reinforced nylon | 24.1 bar | 350 psi | 2.441 in (62 mm) | 9.201 in (233.7 mm) | Glass reinforced nylon | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated | ||
| 932629Q | Backordered | 48 in stock | $192.23/each | EA | EA | Fluorocarbon | 05Q Microglass | double | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 2.44 inch | 9.2 inch | 1 | FKM: Fluorocarbon | 5 µ | 7 µ | 24.1 bar | 350 psi | 5 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 05Q | ParFit | FKM: Fluorocarbon | 7 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 5 Micron Absolute | Microglass | PALL | 5 µ | Glass reinforced nylon | 24.1 bar | 350 psi | 2.441 in (62 mm) | 9.201 in (233.7 mm) | Glass reinforced nylon | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated | ||
| 932630Q | Backordered | 94 in stock | $178.63/each | EA | EA | Fluorocarbon | 10Q Microglass | double | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 62.0 mm | 9.2 inch | 1 | FKM: Fluorocarbon | 9 µ | 12 µ | 24.1 bar | 350 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 10Q | ParFit | FKM: Fluorocarbon | 12 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 10 Micron Absolute | Microglass | CATERPILLAR XREF | 9 µ | Glass reinforced nylon | 24.1 bar | 350 psi | 2.441 in (62 mm) | 9.201 in (233.7 mm) | Glass reinforced nylon | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated | ||
| 932631Q | Backordered | 19 in stock | $402.79/each | EA | EA | Fluorocarbon | 02Q microglass high collapse 2000 psid | double | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 62.0 mm | 233.7 mm | 1 | FKM: Fluorocarbon | 4 µ | 5 µ | 138 bar | 2000 psi | 2 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 02QH | ParFit | FKM: Fluorocarbon | 5 µ | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | Epoxy | Epoxy | 2 Micron Absolute | Microglass | PALL | 4 µ | Steel zinc plated | 138 bar | 2000 psi | 2.441 in (62 mm) | 9.201 in (233.7 mm) | Steel zinc plated | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated (wrapped) | ||
| 932632Q | Backordered | 24 in stock | $378.20/each | EA | EA | Fluorocarbon | 05Q microglass high collapse 2000 psid | double | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 2.44 inch | 233.7 mm | 1 | FKM: Fluorocarbon | 5 µ | 7 µ | 138 bar | 2000 psi | 5 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 05QH | ParFit | FKM: Fluorocarbon | 7 µ | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | Epoxy | Epoxy | 5 Micron Absolute | Microglass | PALL | 5 µ | Steel zinc plated | 138 bar | 2000 psi | 2.441 in (62 mm) | 9.201 in (233.7 mm) | Steel zinc plated | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated (wrapped) | ||
| 932633Q | Backordered | 68 in stock | $364.84/each | EA | EA | Fluorocarbon | 10Q microglass high collapse 2000 psid | double | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 2.44 inch | 233.7 mm | 1 | FKM: Fluorocarbon | 9 µ | 12 µ | 138 bar | 2000 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 10QH | ParFit | FKM: Fluorocarbon | 12 µ | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | Epoxy | Epoxy | 10 Micron Absolute | Microglass | PALL | 9 µ | Steel zinc plated | 138 bar | 2000 psi | 2.441 in (62 mm) | 9.201 in (233.7 mm) | Steel zinc plated | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated (wrapped) | ||
| 933135Q | Backordered | Backordered | $88.00/each | EA | EA | Fluorocarbon | 20Q Microglass | single | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 2.44 inch | 4.9 inch | 1 | FKM: Fluorocarbon | 16 µ | 20 µ | 24.1 bar | 350 psi | 20 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 20Q | ParFit | FKM: Fluorocarbon | 20 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 20 Micron Absolute | Microglass | AIRFIL | 16 µ | Glass reinforced nylon | 24.1 bar | 350 psi | 2.441 in (62 mm) | 4.902 in (124.5 mm) | Glass reinforced nylon | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated | ||
| 933136Q | 5 in stock | 311 in stock | $138.75/each | EA | EA | Fluorocarbon | 20Q Microglass | double | 30P/30PD | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 2.44 inch | 9.2 inch | 1 | FKM: Fluorocarbon | 16 µ | 20 µ | 24.1 bar | 350 psi | 20 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 20Q | ParFit | FKM: Fluorocarbon | 20 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 20 Micron Absolute | Microglass | AIRFIL | 16 µ | Glass reinforced nylon | 24.1 bar | 350 psi | 2.441 in (62 mm) | 9.201 in (233.7 mm) | Glass reinforced nylon | 2.441 in (62 mm) | 1.429 in (36.3 mm) | Mild steel tin plated | ||
| 933183Q | Backordered | Backordered | $135.45/each | EA | Ethylene Propylene | 02Q microglass high collapse 2000 psid | single | 15P | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Skydrol/Aggressive fluids | 1.77 | 4.5 | |||||||||||||||||||||||||||||||||||
| 933336Q | Backordered | Backordered | $71.33/each | EA | Ethylene Propylene | 10Q Microglass | double | 15P | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Skydrol/Aggressive fluids | 1.77 inch | 8.2 inch | |||||||||||||||||||||||||||||||||||
| 933384Q | Backordered | Backordered | $64.25/each | EA | Ethylene Propylene | 02Q Microglass | single | 15P | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Skydrol/Aggressive fluids | 1.77 inch | 114.3 mm | |||||||||||||||||||||||||||||||||||
| 933576Q | 3 in stock | Backordered | $148.19/each | EA | EA | Fluorocarbon | 02Q microglass high collapse 3000 psid | single | 15P | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 1.77 inch | 114.3 mm | 1 | FKM: Fluorocarbon | 4 µ | 5 µ | 207 bar | 3000 psi | 2 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 02QX | ParFit | FKM: Fluorocarbon | 5 µ | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | Epoxy | Epoxy | 2 Micron Absolute | Microglass | FAIREY-ARLON | 4 µ | Steel zinc plated | 207 bar | 3000 psi | 1.772 in (45 mm) | 4.5 in (114.3 mm) | Steel zinc plated | 1.772 in (45 mm) | Mild steel tin plated (wrapped) | 1 in (25.4 mm) | ||
| 933577A | Backordered | Backordered | POR | EA | EA | Fluorocarbon | 10A static control high collapse 3000 psid | single | 15P | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 1.77 | 4.5 | 1 | FKM: Fluorocarbon | 9 µ | 12 µ | 207 bar | 3000 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | ParFit | FKM: Fluorocarbon | 12 µ | Multilayered Static Control fiberglass with epoxy coated wire mesh pleat support | Epoxy | Epoxy | 10 Micron Absolute | Microglass | 9 µ | Steel zinc plated | 207 bar | 3000 psi | 1.772 in (45 mm) | 4.5 in (114.3 mm) | Steel zinc plated | 1.772 in (45 mm) | Steel tin plated (wrapped) | 1 in (25.4 mm) | ||||||
| 933577Q | Backordered | 18 in stock | $178.61/each | EA | EA | Fluorocarbon | 10Q microglass high collapse 3000 psid | single | 15P | Engine Mobile Hydraulic and Fuel Filtration Division | Hydraulic Filter | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 1.77 inch | 4.5 inch | 1 | FKM: Fluorocarbon | 10 µ | 12 µ | 207 bar | 3000 psi | 10 Micron Absolute | Microglass | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 10QX | ParFit | FKM: Fluorocarbon | 12 µ | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | Epoxy | Epoxy | 10 Micron Absolute | Microglass | FINN FILTER | 10 µ | Steel zinc plated | 207 bar | 3000 psi | 1.772 in (45 mm) | 4.5 in (114.3 mm) | Steel zinc plated | 1.772 in (45 mm) | Mild steel tin plated (wrapped) | 1 in (25.4 mm) |
