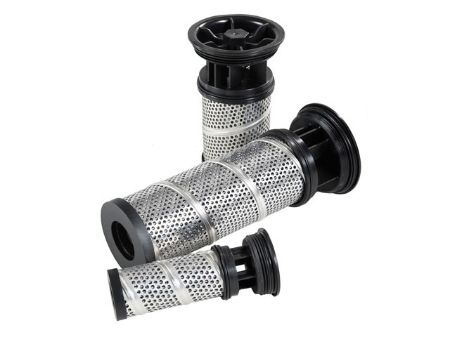

Replacement Elements - Low Pressure Filter PT Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker PT Series Low Pressure Return Line Filters provide an economical alternative for quality tank top mounted filtration. With a filter element assembly designed for direct screw-in mounting and easy removal, the PT Series offers both convenience and value.
Using genuine Parker PT Series replacement elements guarantees Parker’s quality of filtration. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single, Double, and Triple lengths and several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Filter Element | Length | Seal Material | Filter Housing Series | Division | Filter Element Type | For Fluid Type | Efficiency βx(C) ≥ 1000 | Seals | Collapse Pressure (bar) | Element Length | Nominal Filter Rating | Operating Temperature | Collapse Pressure (psi) | Efficiency βx(C) ≥ 200 | Filter Media Type | Pkg Qty | Parker Group | Parker Division | Operating Temperature | Element Length | Bypass | Filter Media Code | Filter Media Type | Seals | Efficiency βx(C) ≥ 1000 | Media Composition Detail | Glue Side Seam Adhesive | Glue Endcaps Adhesive | Efficiency βx(C) ≥ 200 | Top Endcap Material | Bottom Endcap Material | Collapse Pressure (bar) | Collapse Pressure (psi) | Series | D Dimension | E Dimension | Outer Support Cylinder Material | Element Type | Nominal Filter Rating | Element Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 936742 | Backordered | Backordered | $96.47/each | EA | EA | 02Q Microglass | single | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 5 µ | NBR: Nitrile | 10.3 bar | Single | 2 micron | -40F to 225F (-40C to 107C) | 150 psi | 4 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 25 PSI (1.7 bar) | 02Q | Microglass III | NBR: Nitrile | 5 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 4 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 6.34 in (161 mm) | Mild steel tin plated | Inside-Out | 2 micron | 2.2 | |
| 936743 | Backordered | Backordered | $92.84/each | EA | EA | 05Q Microglass | single | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 7 µ | NBR: Nitrile | 10.3 bar | Single | 5 micron | -40F to 225F (-40C to 107C) | 150 psi | 5 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 25 PSI (1.7 bar) | 05Q | Microglass III | NBR: Nitrile | 7 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 5 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 6.34 in (161 mm) | Mild steel tin plated | Inside-Out | 5 micron | 2.2 | |
| 936744 | Backordered | 12 in stock | $115.62/each | EA | EA | 10Q Microglass | single | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 12 µ | NBR: Nitrile | 10.3 bar | Single | 10 micron | -40F to 225F (-40C to 107C) | 150 psi | 9 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 25 PSI (1.7 bar) | 10Q | Microglass III | NBR: Nitrile | 12 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 9 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 6.34 in (161 mm) | Mild steel tin plated | Inside-Out | 10 micron | 2.2 | |
| 936745 | Backordered | Backordered | $85.32/each | EA | EA | 20Q Microglass | single | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 20 µ | NBR: Nitrile | 10.3 bar | Single | 20 micron | -40F to 225F (-40C to 107C) | 150 psi | 16 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 25 PSI (1.7 bar) | 20Q | Microglass III | NBR: Nitrile | 20 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 16 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 6.34 in (161 mm) | Mild steel tin plated | Inside-Out | 20 micron | 2.2 | |
| 936746 | Backordered | 12 in stock | $143.79/each | EA | EA | 02Q Microglass | double | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 5 µ | NBR: Nitrile | 10.3 bar | Double | 2 micron | -40F to 225F (-40C to 107C) | 150 psi | 4 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 25 PSI (1.7 bar) | 02Q | Microglass III | NBR: Nitrile | 5 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 4 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 9.92 in (252 mm) | Mild steel tin plated | Inside-Out | 2 micron | 3.08 | |
| 936747 | Backordered | 2 Limited Stock | $138.13/each | EA | EA | 05Q Microglass | double | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 7 µ | NBR: Nitrile | 10.3 bar | Double | 5 micron | -40F to 225F (-40C to 107C) | 150 psi | 5 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 25 PSI (1.7 bar) | 05Q | Microglass III | NBR: Nitrile | 7 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 5 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 9.92 in (252 mm) | Mild steel tin plated | Inside-Out | 5 micron | 3.08 | |
| 936748 | Backordered | 118 in stock | $132.61/each | EA | EA | 10Q Microglass | double | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 12 µ | NBR: Nitrile | 10.3 bar | Double | 10 micron | -40F to 225F (-40C to 107C) | 150 psi | 9 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 25 PSI (1.7 bar) | 10Q | Microglass III | NBR: Nitrile | 12 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 9 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 9.92 in (252 mm) | Mild steel tin plated | Inside-Out | 10 micron | 3.08 | |
| 936749 | Backordered | Backordered | $98.31/each | EA | EA | 20Q Microglass | double | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 20 µ | NBR: Nitrile | 10.3 bar | Double | 20 micron | -40F to 225F (-40C to 107C) | 150 psi | 16 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 25 PSI (1.7 bar) | 20Q | Microglass III | NBR: Nitrile | 20 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 16 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 9.92 in (252 mm) | Mild steel tin plated | Inside-Out | 20 micron | 3.08 | |
| 936750 | Backordered | Backordered | $67.52/each | EA | EA | 02Q Microglass | single | Nitrile or Fluorocarbon | PT2 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 5 µ | NBR: Nitrile | 10.3 bar | Single | 2 micron | -40F to 225F (-40C to 107C) | 150 psi | 4 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 25 PSI (1.7 bar) | 02Q | Microglass III | NBR: Nitrile | 5 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 4 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT2 | 1.8 in (45.7 mm) | 5.72 in (145.3 mm) | Mild steel tin plated | Inside-Out | 2 micron | 0.88 | |
| 936751 | Backordered | 11 in stock | $80.65/each | EA | EA | 05Q Microglass | single | Nitrile or Fluorocarbon | PT2 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 7 µ | NBR: Nitrile | 10.3 bar | Single | 5 micron | -40F to 225F (-40C to 107C) | 150 psi | 5 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 25 PSI (1.7 bar) | 05Q | Microglass III | NBR: Nitrile | 7 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 5 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT2 | 1.8 in (45.7 mm) | 5.72 in (145.3 mm) | Mild steel tin plated | Inside-Out | 5 micron | 0.88 | |
| 936752 | Backordered | 136 in stock | $77.26/each | EA | EA | 10Q Microglass | single | Nitrile or Fluorocarbon | PT2 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 12 µ | NBR: Nitrile | 10.3 bar | Single | 10 micron | -40F to 225F (-40C to 107C) | 150 psi | 9 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 25 PSI (1.7 bar) | 10Q | Microglass III | NBR: Nitrile | 12 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 9 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT2 | 1.8 in (45.7 mm) | 5.72 in (145.3 mm) | Mild steel tin plated | Inside-Out | 10 micron | 0.88 | |
| 936753 | Backordered | 1 Limited Stock | $74.24/each | EA | EA | 20Q Microglass | single | Nitrile or Fluorocarbon | PT2 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 20 µ | NBR: Nitrile | 10.3 bar | Single | 20 micron | -40F to 225F (-40C to 107C) | 150 psi | 16 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | 25 PSI (1.7 bar) | 20Q | Microglass III | NBR: Nitrile | 20 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 16 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT2 | 1.8 in (45.7 mm) | 5.72 in (145.3 mm) | Mild steel tin plated | Inside-Out | 20 micron | 0.88 | |
| 936754 | Backordered | 19 in stock | $114.02/each | EA | EA | 02Q Microglass | double | Nitrile or Fluorocarbon | PT2 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 5 µ | NBR: Nitrile | 10.3 bar | Double | 2 micron | -40F to 225F (-40C to 107C) | 150 psi | 4 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 25 PSI (1.7 bar) | 02Q | Microglass III | NBR: Nitrile | 5 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 4 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT2 | 1.8 in (45.7 mm) | 9.43 in (239.5 mm) | Mild steel tin plated | Inside-Out | 2 micron | 1.32 | |
| 936755 | Backordered | 10 in stock | $103.57/each | EA | EA | 05Q Microglass | double | Nitrile or Fluorocarbon | PT2 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 7 µ | NBR: Nitrile | 10.3 bar | Double | 5 micron | -40F to 225F (-40C to 107C) | 150 psi | 5 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 25 PSI (1.7 bar) | 05Q | Microglass III | NBR: Nitrile | 7 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 5 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT2 | 1.8 in (45.7 mm) | 9.43 in (239.5 mm) | Mild steel tin plated | Inside-Out | 5 micron | 1.32 | |
| 936756 | 4 in stock | 240 in stock | $74.17/each | EA | EA | 10Q Microglass | double | Nitrile or Fluorocarbon | PT2 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 12 µ | NBR: Nitrile | 10.3 bar | Double | 10 micron | -40F to 225F (-40C to 107C) | 150 psi | 9 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 25 PSI (1.7 bar) | 10Q | Microglass III | NBR: Nitrile | 12 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 9 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT2 | 1.8 in (45.7 mm) | 9.43 in (239.5 mm) | Mild steel tin plated | Inside-Out | 10 micron | 1.32 | |
| 936757 | Backordered | 56 in stock | $84.44/each | EA | EA | 20Q Microglass | double | Nitrile or Fluorocarbon | PT2 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 20 µ | NBR: Nitrile | 10.3 bar | Double | 20 micron | -40F to 225F (-40C to 107C) | 150 psi | 16 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | 25 PSI (1.7 bar) | 20Q | Microglass III | NBR: Nitrile | 20 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 16 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT2 | 1.8 in (45.7 mm) | 9.43 in (239.5 mm) | Mild steel tin plated | Inside-Out | 20 micron | 1.32 | |
| 936876 | Backordered | Backordered | $120.70/each | EA | EA | 02Q Microglass | triple | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 5 µ | NBR: Nitrile | 10.3 bar | Triple | 2 micron | -40F to 225F (-40C to 107C) | 150 psi | 4 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Triple | 25 PSI (1.7 bar) | 02Q | Microglass III | NBR: Nitrile | 5 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 4 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 14.69 in (373 mm) | Mild steel tin plated | Inside-Out | 2 micron | 4.4 | |
| 936877 | Backordered | 39 in stock | $150.46/each | EA | EA | 05Q Microglass | triple | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 7 µ | NBR: Nitrile | 10.3 bar | Triple | 5 micron | -40F to 225F (-40C to 107C) | 150 psi | 5 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Triple | 25 PSI (1.7 bar) | 05Q | Microglass III | NBR: Nitrile | 7 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 5 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 14.69 in (373 mm) | Mild steel tin plated | Inside-Out | 5 micron | 4.4 | |
| 936878 | 1 Limited Stock | 129 in stock | $111.13/each | EA | EA | 10Q Microglass | triple | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 12 µ | NBR: Nitrile | 10.3 bar | Triple | 10 micron | -40F to 225F (-40C to 107C) | 150 psi | 9 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Triple | 25 PSI (1.7 bar) | 10Q | Microglass III | NBR: Nitrile | 12 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 9 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 14.69 in (373 mm) | Mild steel tin plated | Inside-Out | 10 micron | 4.4 | |
| 936879 | Backordered | 6 in stock | $141.02/each | EA | EA | 20Q Microglass | triple | Nitrile or Fluorocarbon | PT4 | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 20 µ | NBR: Nitrile | 10.3 bar | Triple | 20 micron | -40F to 225F (-40C to 107C) | 150 psi | 16 µ | Microglass III | 1 | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Triple | 25 PSI (1.7 bar) | 20Q | Microglass III | NBR: Nitrile | 20 µ | Multilayer fiberglass with epoxy coated mesh on both sides | Epoxy | Epoxy | 16 µ | Glass reinforced nylon | Glass reinforced nylon | 10.3 bar | 150 psi | PT4 | 3.09 in (78.5 mm) | 14.69 in (373 mm) | Mild steel tin plated | Inside-Out | 20 micron | 4.4 |
