936748 - Replacement Elements - Low Pressure Filter PT Series

The Parker PT Series Low Pressure Return Line Filters combine high efficiency Quantumfiber filtration with low cost installation. Easily removed for maintenance, this filter offers both convenience and dependability.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	118 in stock

SKU 936748

$132.61/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element	10Q Microglass
Length	double	Seal Material	Nitrile or Fluorocarbon
Filter Housing Series	PT4	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Filter Element Type	Cartridge
Efficiency βx(C) ≥ 1000	12 µ	UOM	EA
Pkg Qty	1	Element Length	Double
Collapse Pressure (bar)	10.3 bar	Seals	NBR: Nitrile
Operating Temperature	-40F to 225F (-40C to 107C)	Efficiency βx(C) ≥ 200	9 µ
Nominal Filter Rating	10 micron	Collapse Pressure (psi)	150 psi
Filter Media Type	Microglass III	Parker Group	Filtration
Parker Division	Hydraulic Filter	Operating Temperature	-40F to 225F (-40C to 107C)
Bypass	25 PSI (1.7 bar)	Element Length	Double
Filter Media Type	Microglass III	Filter Media Code	10Q
Seals	NBR: Nitrile	Efficiency βx(C) ≥ 200	9 µ
Efficiency βx(C) ≥ 1000	12 µ	Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides
Glue Side Seam Adhesive	Epoxy	Glue Endcaps Adhesive	Epoxy
Top Endcap Material	Glass reinforced nylon	Bottom Endcap Material	Glass reinforced nylon
Collapse Pressure (bar)	10.3 bar	Collapse Pressure (psi)	150 psi
Series	PT4	D Dimension	3.09 in (78.5 mm)
E Dimension	9.92 in (252 mm)	Outer Support Cylinder Material	Mild steel tin plated
Element Type	Inside-Out	Nominal Filter Rating	10 micron
Element Weight (kg)	3.08

Customers who bought this item also bought

926169 - Replacement Elements - Low Pressure Filter 12AT/50AT/80AT/80UT Series

The Parker 12AT/50AT/80AT/80UT Series Low Pressure Spin-On Replacement cans are cost effective, yet uncompromising in performance and quality. The disposable container contains the oil inside and is easy to handle.

$32.76/each

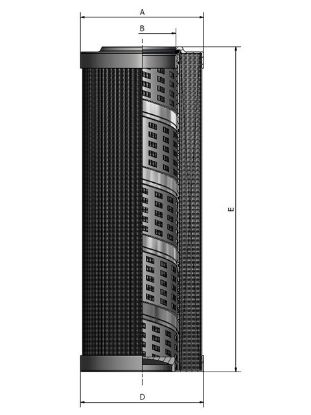

932664Q - Replacement Elements - CN Series
