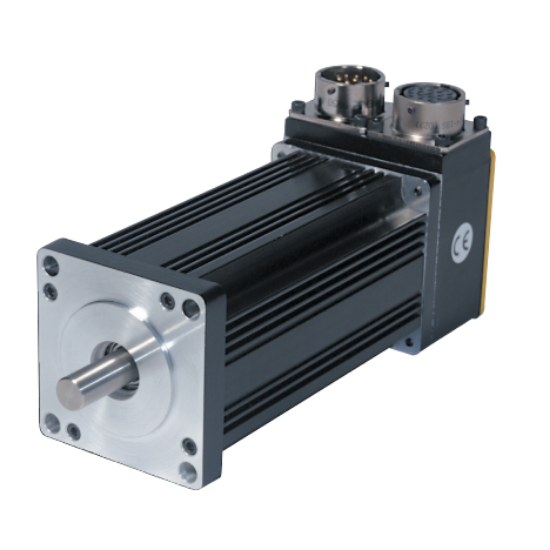

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

SM232BR-KPSBV

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU SM232BR-KPSBV

Products specifications

Attribute name	Attribute value
UOM	EA	Inductance	0.60 mH
Type	Brushless	Voltage Constant	12.51 Volts/krpm
Frame Size	NEMA23	Stall Torque Continuous	0.74 Nm
Peak Torque	2.21 Nm	Stall Current Continuous	3.6 Arm
Resistance	2 Ohm	Rated Speed	7500 rpm
Motor	Servo	Torque at Rated Speed	0.68 Nm
Number of Poles	4	Shaft Power at Rated Speed	528 Watt
Torque Constant	0.207 Nm/Arm	Maximum Bus Voltage	170 VDC
Current at Rated Speed	3.3 Arm
