Small Bore High Pressure Mini Hydraulic Hose – 2020N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

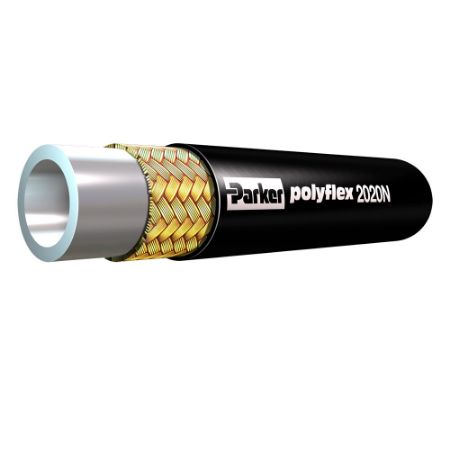

High pressure 2020N Polyflex hoses feature a very small hose I.D. and are rated up to 6,890 psi. They are used anywhere high pressure services require a very small hose O.D. such as mini-hydraulic and gas applications. Parker 2020N hose assemblies feature extremely long lengths which reduce potential leak points by eliminating multiple adaptors and they show low dimensional change under pressure, resulting in excellent response times with very low pressure drops.

Markets:
• Upstream Oil & Gas
• Land-based and offshore
• Industrial

Features/Benefits:
• Small I.D. hose with compact O.D.
• Good flexibility
• Continuous long lengths without splices
• Available in twin line constructions

Applications:
• Mini-hydraulic systems
• Gas applications
• Measuring systems
• Diagnostic systems

View as Grid List

Sort by

Display per page

Action	SKU	Availability	Partner Available	Price	UOM	Hose I.D. (size)	Application	Specifications Met	Minimum Operating Temperature	Hose Reinforcement Material	Minimum Bend Radius	Outside Diameter	Weight	Maximum Operating Pressure	Inside Diameter	Maximum Operating Temperature	Compatible Fitting	Hose Inner Tube Material	Division	Size	Cover Material	Media	Design Factor
	2020N-02V30	Backordered	569 in stock	POR	FT	-2	Hydraulic Systems	n/a	-40 °C	1 Braid of High Tensile Synthetic Fiber	30 mm	0.240 inch	0.02 kg/m	5800 psi	3.2 mm	212 °F	RX Series	Conductive	Parflex Division	-2	Polyurethane	Petroleum Hydraulic Fluids	4:1
