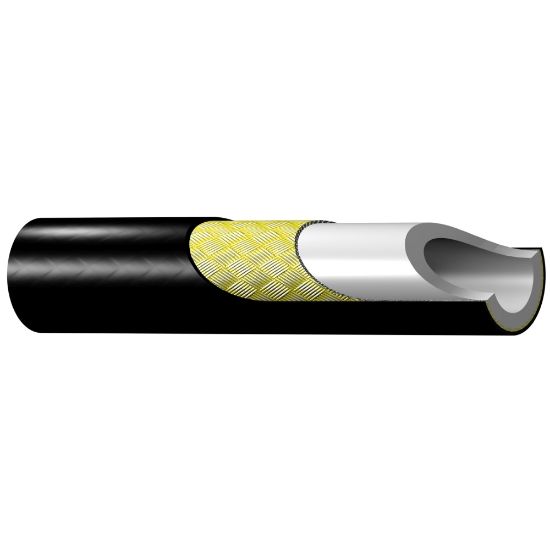

2020N-02V30 - Small Bore High Pressure Mini Hydraulic Hose – 2020N

Parker high pressure mini hydraulic hoses feature a compact hose O.D. for use in mini-hydraulic applications under 7,000 psi.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	569 in stock

SKU 2020N-02V30

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-2
Application	Hydraulic Systems	Specifications Met	n/a
Minimum Operating Temperature	-40 °C	Hose Reinforcement Material	1 Braid of High Tensile Synthetic Fiber
Minimum Bend Radius	30 mm	Outside Diameter	0.240 inch
Weight	0.02 kg/m	Maximum Operating Pressure	5800 psi
Inside Diameter	3.2 mm	Maximum Operating Temperature	212 °F
Compatible Fitting	RX Series	Hose Inner Tube Material	Conductive
Division	Parflex Division	Size	-2
Cover Material	Polyurethane	Media	Petroleum Hydraulic Fluids
Design Factor	4:1
