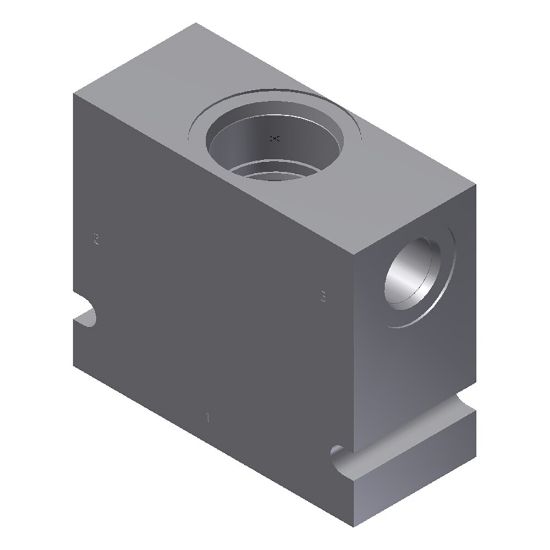

B16-3S-A16T - Standard Bodies

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU B16-3S-A16T

$95.48/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	SAE
Body Material	Aluminum	Number of Positions	3 way
Cavity Size	C16-3S	Connection Size	-16
Division	Hydraulic Systems Division	Connection Type	SAE
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body
For Fluid Type	Mineral-based Hydraulic Fluids	Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body
Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body	Weight	0.91 kg
Maximum Operating Pressure	3000 psi	Body Material	Aluminum
Cavity Size	C16-3S	Number of Positions	3-Way
Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Connection Size	-16
