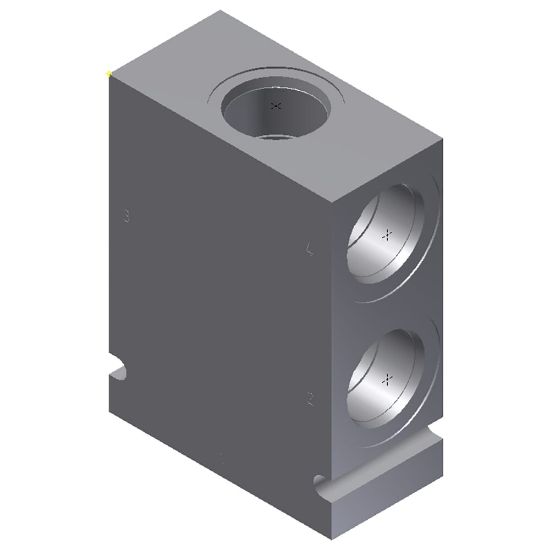

B16-4-A16T - Standard Bodies

Name: B16-4-A16T - Standard Bodies
SKU: B16-4-A16T
Price: 204.67 USD
Availability: LimitedAvailability

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

Manufacturer: Parker

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU B16-4-A16T

$204.67/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	SAE
Body Material	Aluminum	Number of Positions	4 way
Cavity Size	C16-4	Connection Size	-16
Maximum Operating Pressure	210 bar	Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body
Weight	1.13 kg	Body Material	Aluminum
Division	Hydraulic Systems Division	Cavity Size	C16-4
Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Number of Positions	4-Way
Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body	Connection Size	-16
Connection Type	SAE	Seal Material	Determined by Threaded Cartridge Valve installed in Line Body
Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
