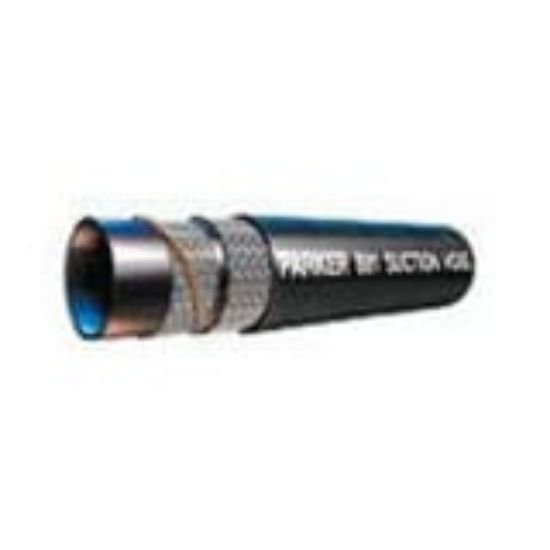

881-12 - Suction and Return Line Hose 62-300 PSI – 881 Hose

Name: 881-12 - Suction and Return Line Hose 62-300 PSI – 881 Hose
SKU: 881-12
Price: 17.94 USD
Availability: InStock

Parker's 881 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Manufacturer: Parker

Availability:

390 in stock

Springfield, MO	127
Peoria, IL	72
COLUMBIA, MO	60
Olivette, MO	52
TOPEKA, KS	33
Decatur, IL	21
Wichita, KS	20
WICHITA, KS	2

Partner Available:

3387 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 881-12

$17.94/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-12
Cover Material	MSHA Approved	Minimum Operating Temperature	-40 °C
Minimum Bend Radius	127 mm	Media	Petroleum Hydraulic Fluids
Outside Diameter	1.2 inch	Nominal Hose Inside Diameter	19 mm
Application	Petroleum Base Hydraulic Fluids	Hose Reinforcement Material	Multiple Braids of Fiber with Wire Helix
Specifications Met	USCG HF	Vacuum Pressure Rating	28 Inch-Hg
Maximum Operating Pressure	2.1 MPa	Weight	0.74 kg/m
Inside Diameter	3/4 inch	Hose Inner Tube Material	Synthetic Rubber
Design Factor	4:1	Maximum Operating Temperature	257 °F
Compatible Fitting	81 Series	Division	Hose Products Division

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English) (PDF)
