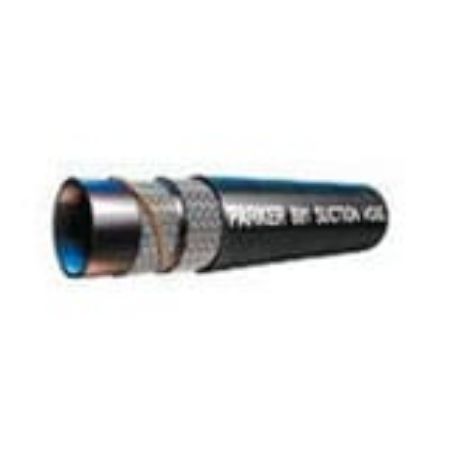

Suction and Return Line Hose 62-300 PSI – 881 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 881 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications. The 881 hose is designed, built, and tested to meet SAE 100R4 performance specifications. Sizes range from ¾” to 2-½” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• RV & Bus
• Military
• Construction
• Agriculture
• Grounds & Building Maintenance
• Forestry
• Railroad
• Utility Equipment
• Personnel Lift Equipment
• Machine Tool
• Oil Field Service
• Waste & Refuse
• Material Handling
• Marine
• Paving & Road Maintenance
• Ground Support Equipment
• Industrial
• Mining
Features/Benefits:
• 62-300 PSI working pressure in different sizes
• SAE J517 100R4 / SAE J1942 Performance Specifications
• Oil and weather-resistant synthetic rubber cover, MSHA accepted
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings
• 81 series fittings
• 88 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (size) | Cover Material | Minimum Operating Temperature | Minimum Bend Radius | Media | Outside Diameter | Nominal Hose Inside Diameter | Application | Hose Reinforcement Material | Specifications Met | Vacuum Pressure Rating | Maximum Operating Pressure | Weight | Inside Diameter | Hose Inner Tube Material | Design Factor | Maximum Operating Temperature | Compatible Fitting | Division |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 881-12 | 390 in stock | 3387 in stock | $17.94/foot | FT | -12 | MSHA Approved | -40 °C | 127 mm | Petroleum Hydraulic Fluids | 1.2 inch | 19 mm | Petroleum Base Hydraulic Fluids | Multiple Braids of Fiber with Wire Helix | USCG HF | 28 Inch-Hg | 2.1 MPa | 0.74 kg/m | 3/4 inch | Synthetic Rubber | 4:1 | 257 °F | 81 Series | Hose Products Division | |
| 881-16 | 461 in stock | 4999 in stock | $20.78/foot | FT | -16 | Synthetic Rubber | -40 °C | 6 inch | Petroleum Hydraulic Fluids | 1.490 inch | 25 mm | Petroleum Base Hydraulic Fluids | Multiple Braids of Fiber with Wire Helix | USCG HF | 28 Inch-Hg | 250 psi | 0.89 kg/m | 1 inch | Synthetic Rubber | 4:1 | 257 °F | 81 Series | Hose Products Division | |
| 881-20 | 532 in stock | 5142 in stock | $26.68/foot | FT | -20 | Synthetic Rubber | -40 °F | 8 inch | Petroleum Hydraulic Fluids | 45.3 mm | 31 mm | Petroleum Base Hydraulic Fluids | Multiple Braids of Fiber with Wire Helix | SAE 100R4 | 28 Inch-Hg | 200 psi | 0.89 lb/ft | 31.8 mm | Synthetic Rubber | 4:1 | 257 °F | 88 Series | Hose Products Division | |
| 881-24 | 351 in stock | 4593 in stock | $35.43/foot | FT | -24 | Synthetic Rubber | -40 °F | 10 inch | Lubricants | 2.060 inch | 38 mm | Petroleum Base Hydraulic Fluids | Multiple Braids of Fiber with Wire Helix | SAE 100R4 | 95 kPa | 150 psi | 1.11 lb/ft | 1-1/2 inch | Synthetic Rubber | 4:1 | 257 °F | 81 Series | Hose Products Division | |
| 881-32 | 2902 in stock | 2344 in stock | $53.07/foot | FT | -32 | Synthetic Rubber | -40 °C | 305 mm | Petroleum Hydraulic Fluids | 2.480 inch | 50 mm | Lubricating Oils | Multiple Braids of Fiber with Wire Helix | SAE 100R4 | 28 Inch-Hg | 0.7 MPa | 1.89 kg/m | 50.8 mm | Synthetic Rubber | 4:1 | 257 °F | 88 Series | Hose Products Division | |
| 881-40 | 208 in stock | 366 in stock | $88.18/foot | FT | -40 | MSHA Approved | -40 °F | 356 mm | Petroleum Hydraulic Fluids | 3 inch | 63 mm | Petroleum Base Hydraulic Fluids | Multiple Braids of Fiber with Wire Helix | SAE J1943 | 28 Inch-Hg | 62 psi | 2.71 kg/m | 2-1/2 inch | Synthetic Rubber | 4:1 | 125 °C | 81 Series | Hose Products Division |
