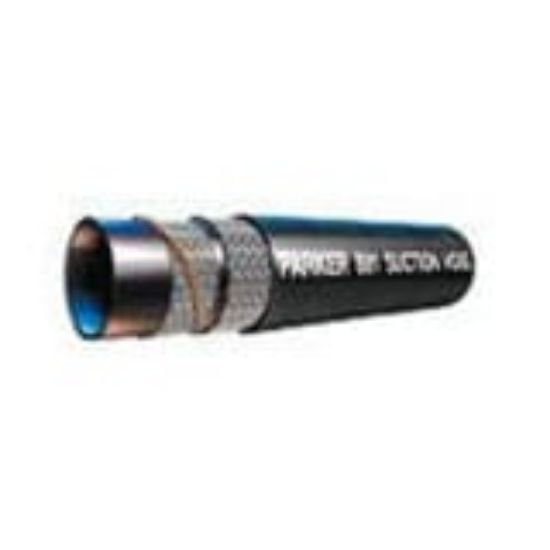

881-16 - Suction and Return Line Hose 62-300 PSI – 881 Hose

Name: 881-16 - Suction and Return Line Hose 62-300 PSI – 881 Hose
SKU: 881-16
Price: 20.78 USD
Availability: InStock

Parker's 881 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Manufacturer: Parker

Availability:

461 in stock

Peoria, IL	143
Springfield, MO	72
COLUMBIA, MO	60
Decatur, IL	59
TOPEKA, KS	52
Kansas City, KS	38
Wichita, KS	28
Olivette, MO	5

Partner Available:

4999 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 881-16

$20.78/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-16
Vacuum Pressure Rating	28 Inch-Hg	Maximum Operating Pressure	250 psi
Nominal Hose Inside Diameter	25 mm	Inside Diameter	1 inch
Outside Diameter	1.490 inch	Weight	0.89 kg/m
Maximum Operating Temperature	257 °F	Hose Inner Tube Material	Synthetic Rubber
Compatible Fitting	81 Series	Division	Hose Products Division
Cover Material	Synthetic Rubber	Media	Petroleum Hydraulic Fluids
Design Factor	4:1	Application	Petroleum Base Hydraulic Fluids
Specifications Met	USCG HF	Minimum Operating Temperature	-40 °C
Hose Reinforcement Material	Multiple Braids of Fiber with Wire Helix	Minimum Bend Radius	6 inch

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English) (PDF)
