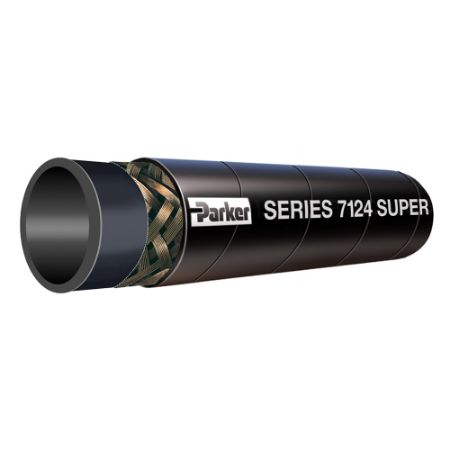

SUPER-FLEX® 2000 Semi-Hardwall Gasoline Dispenser Hose, Series 7124

Parker's Series 7124 Semi-Hardwall Gasoline Dispenser Hose provides excellent service across a wide variety of industrial and commercial curb pump applications. The robust construction reduces meter creep for accurate consumption data and provides excellent crush resistance and kink resistance for maximum performance. The non-marking hose cover does not deface the finish of vehicles and resists abrasion, oil and weathering. Series 7124 is qualified with permanent crimp couplings for a safe and secure connection and provides robust service in consumer-oriented applications.

Markets:

• General Industrial

• Oil & Gas

Features/Benefits:

• Tube: Black nitrile for fuel compatibility to 180°F.

• Reinforcement: One wire braid for crush resistance, strength and durability.

• Cover: Black CPE for abrasion, oil and weathering resistance.

Applications:

- media

• Refined fuels

• Diesel

• Ethanol

• Gasoline

• Oil

- usage

• Curb pumps

• Gasoline dispensers

• In-plant/tank transfer

• Car rental facilities

• Convenience stores

• Garages

• Service stations

Industry Standards:

• UL330/ULC

Safety/Technical:

• Design Factor: 5:1

• Not UL listed for E85 service

Warnings:

• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

• Do not use Parker gasoline dispenser hose for aircraft fueling applications. Use only API/NFPA qualified hose for aircraft fueling applications.
