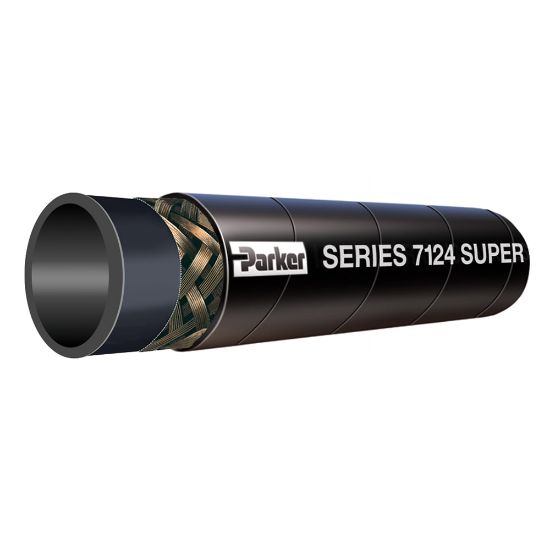

7124-1001A - SUPER-FLEX® 2000 Semi-Hardwall Gasoline Dispenser Hose, Series 7124

Super-Flex 2000 Semi-Hardwall Gasoline Dispenser Hose is designed to transfer refined fuels from powered dispensers to 180°F and 50 psi, Series 7124

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	10 in stock

SKU 7124-1001A

$18.50/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	50
Hose I.D. (inch)	1	Hose Inner Tube Material	Black
Division	Hose Products Division	Length per Package	500 ft
Maximum Operating Temperature	180 °F	Minimum Operating Temperature	-40 °F
Minimum Bend Radius	5 inch	Hose Reinforcement Material	1 Braid of Wire
Cover Structure	Wrapped	Cover Material	Chloroprene Rubber (CR)
Media	Fuels (Biodiesel to B20 in dedicated service)	Inside Diameter	25.4 mm
Maximum Operating Pressure	50 psi	Outside Diameter	1.340 inch
Package Type	Reel	Application	Petroleum Transfer
Specifications Met	UL 30, N4 (factory assemblies)	Cover Color	Black
Weight	0.5 lb/ft

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
