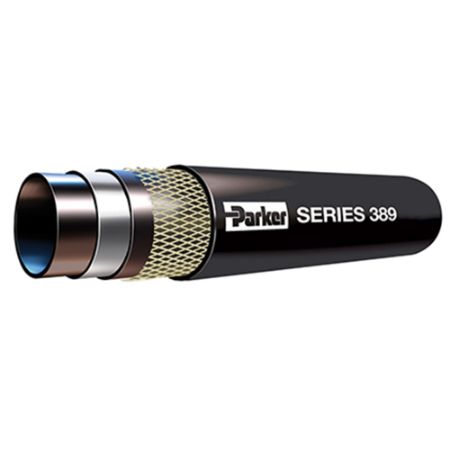

SUPER-FLEX® FL-7 Barrier Fuel Line Hose, Series 389

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series 389 Super-Flex FL-7 Barrier Fuel Line Hose provides excellent service across a wide variety of fuels and multiple engine applications. The thermoplastic liner serves as a barrier to limit permeation of Volatile Organic Compounds (VOC), providing compliance with government and industry regulations. The hose is compatible with Parker Safe Lock™ SAE J2044 quick connect fittings for easy and secure attachment and installation. The cover resists oil and high temperatures common to engine compartments, providing maximum performance in challenging applications.

Markets:
• Agriculture
• Construction
• General Industrial
• Transportation

Features/Benefits:
• Tube: Black nitrile with THV barrier for exceptional fuel and permeation resistance to 257°F.
• Reinforcement: Multiple aramid plies for strength and a slim profile for easy routing.
• Cover: Black CPE for abrasion, heat and oil r1esistance.
• Couplings: Parker SAE J2044 Safe Lock quick connect; also qualified with crimp couplings for a durable, safe and secure connection.

Applications:
- media
• Biodiesel (to B20 in dedicated and non-dedicated service)
• Diesel
• Ethanol
• Gasoline
• Oil
- usage
• Blowers
• Grinders
• Mowers
• Pressure Washers
• Saws
- settings
• Agricultural equipment
• Buses
• Construction equipment
• Off-road equipment

Industry Standards:
• CARB 2006/SORE
• EPA
• SAE J30R7/30R14T2

Safety/Technical:
• Click here to link to Hose & Chemical Guides.
• Do not use in marine fuel applications.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Maximum Working Pressure (psi)	Vacuum Pressure Rating	Cover Color	Weight	Length per Package	Application	Specifications Met	Outside Diameter	Package Type	Maximum Operating Pressure	Inside Diameter	Cover Structure	Cover Material	Minimum Operating Temperature	Minimum Bend Radius	Hose Reinforcement Material	Maximum Operating Temperature	Compatible Fitting	Division	Hose Inner Tube Material	Media
38903	43895 in stock	759 in stock	$2.33/foot	FT	3/16	100	24 Inch-Hg	Black	0.06 lb/ft	250 ft	Specialty	SAE J30R7	0.406 inch	Reel	3.4 bar	3/16 inch	Smooth	Chloroprene Rubber (CR)	-40 °F	33 mm	2 Plies of Aramid	125 °C	55 Series	Hose Products Division	Nitrile/Translucent with THV Barrier	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.
38904	37275 in stock	4823 in stock	$2.42/foot	FT	1/4	100	24 Inch-Hg	Black	0.09 lb/ft	250 ft	Specialty	CARB SORE	0.500 inch	Reel	3.4 bar	6.4 mm	Smooth	Chloroprene Rubber (CR)	-40 °F	1.5 inch	2 Plies of Aramid	125 °C	HY Series	Hose Products Division	Black	Fuels (Biodiesel to B20 in dedicated and non-dedicated service)
38905	165 in stock	1316 in stock	$2.86/foot	FT	5/16	100	24 Inch-Hg	Black	0.11 lb/ft	250 ft	Specialty	SAE J30R14, Type 2	14.3 mm	Reel	3.4 bar	5/16 inch	Smooth	Chloroprene Rubber (CR)	-40 °C	50.8 mm	2 Plies of Aramid	125 °C	HY Series	Hose Products Division	Black	Fuels (Diesel) - Check fuel type with our catalogue chart.
38906	Backordered	538 in stock	$4.22/foot	FT	3/8	100	24 Inch-Hg	Black	0.18 kg/m	250 ft	Specialty	SAE J30R14, Type 2	0.625 inch	Reel	100 psi	9.8 mm	Smooth	Chloroprene Rubber (CR)	-40 °F	63.5 mm	2 Plies of Aramid	257 °F	HY Series	Hose Products Division	Black	Fuels (Biodiesel to B20 in dedicated and non-dedicated service)
38908	Backordered	444 in stock	$5.86/foot	FT	1/2	100	10 Inch-Hg	Black	0.26 kg/m	250 ft	Specialty	SAE J30R7	19.8 mm	Reel	100 psi	1/2 inch	Smooth	Chloroprene Rubber (CR)	-40 °F	101.6 mm	2 Plies of Aramid	257 °F	HY Series	Hose Products Division	Nitrile/Translucent with THV Barrier	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.
38910	Backordered	1449 in stock	$7.09/foot	FT	5/8	100	10 Inch-Hg	Black	0.24 lb/ft	250 ft	Specialty	EPA	23.9 mm	Reel	100 psi	5/8 inch	Smooth	Chloroprene Rubber (CR)	-40 °F	5 inch	2 Plies of Aramid	125 °C	n/a	Hose Products Division	Nitrile/Translucent with THV Barrier	Fuels (Biodiesel to B20 in dedicated and non-dedicated service)
