38904 - SUPER-FLEX® FL-7 Barrier Fuel Line Hose, Series 389

Name: 38904 - SUPER-FLEX® FL-7 Barrier Fuel Line Hose, Series 389
SKU: 38904
Price: 2.42 USD
Availability: InStock

Super-Flex FL-7 Barrier Fuel Line Hose is designed for engine fuel supply in applications to 257°F and 100 psi, Series 389.

Manufacturer: Parker

Availability:

37275 in stock

Wichita, KS

37,275

Partner Available:

4823 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 38904

$2.42/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Maximum Working Pressure (psi)	100	Media	Fuels (Biodiesel to B20 in dedicated and non-dedicated service)
Minimum Operating Temperature	-40 °F	Cover Material	Chloroprene Rubber (CR)
Length per Package	250 ft	Division	Hose Products Division
Maximum Operating Temperature	125 °C	Hose Inner Tube Material	Black
Compatible Fitting	HY Series	Inside Diameter	6.4 mm
Outside Diameter	0.500 inch	Vacuum Pressure Rating	24 Inch-Hg
Maximum Operating Pressure	3.4 bar	Weight	0.09 lb/ft
Cover Color	Black	Application	Specialty
Hose Reinforcement Material	2 Plies of Aramid	Minimum Bend Radius	1.5 inch
Cover Structure	Smooth	Specifications Met	CARB SORE
Package Type	Reel

Customers who bought this item also bought

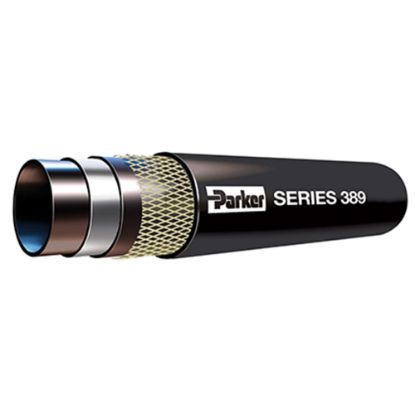

38903 - SUPER-FLEX® FL-7 Barrier Fuel Line Hose, Series 389
