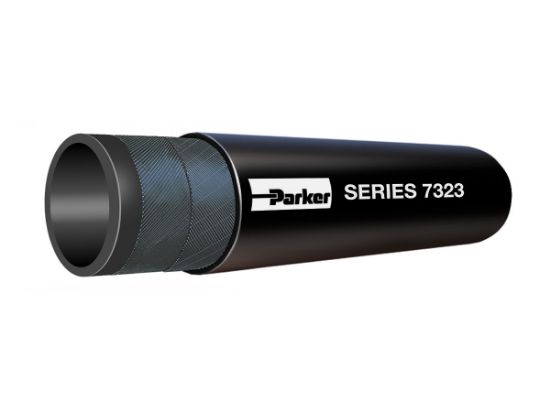

7323-125200 - SUPER-FLEX® GS LARGE DIAMETER GENERAL SERVICE AIR & WATER HOSE

Super-Flex GS Large Diameter General Service Air & Water Hose is designed for transfer of air, mild chemicals and water in applications to 212°F and 200 psi

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	1431 in stock

SKU 7323-125200

$17.55/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	1-1/4	Outside Diameter	1.740 inch
Weight	0.71 lb/ft	Maximum Operating Pressure	1.4 MPa
Inside Diameter	31.8 mm	Nominal Hose Inside Diameter	32 mm
Division	Hose Products Division	Size	-20
Media	Water	Maximum Operating Temperature	100 °C
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Application	Air
Minimum Bend Radius	190.5 mm	Hose Reinforcement Material	2 Plies of Textile
Specifications Met	n/a	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Minimum Operating Temperature	-40 °C	Inner Diameter	1.25 Inch
Package Type	Coil	Working Pressure	200 PSI (14 bar)
Color	Black	Pkg Qty/UOM	200 FT
Pkg Qty	200	Mating Fitting Series	HY
UOM	FT	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter Inch/mm	Inch	Inner Diameter	1.25 Inch
Color	Black	Hose Pressure Range	Low
Mating End Fitting Series	43	Series	7323
Trade Name	SUPER-LOK GS™	Hose Category	General Service Air & Water

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
