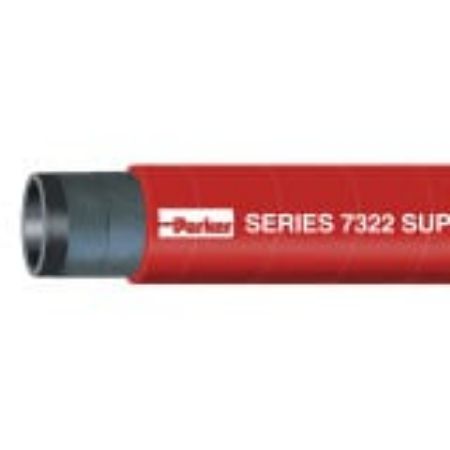

SUPER-FLEX® GS LARGE DIAMETER GENERAL SERVICE AIR & WATER HOSE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Super-Flex GS Large Diameter General Service Air & Water Hose provides excellent service across multiple applications. The hose tube is compatible with light oil mists for tool lubrication. The cover resists abrasion and weathering to provide maximum performance, incorporates a true round, concentric profile for easy coupling installation, and is qualified with permanent crimp couplings for a safe and secure connection. Super-Flex GS hose is a versatile hose for many common industrial applications.

Markets:
• Agriculture
• Construction
• General Industrial

Features/Benefits:
• Tube: Black EPDM for versatile and economical service to 212°F.
• Reinforcement: Multiple textile plies for strength and kink resistance.
• Cover: Black or red EPDM for abrasion and weathering resistance.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

Applications:
• Air
• Mild chemicals
• Water
• Air compressors and pneumatic tools, including those subject to light oil mists for lubrication

Safety/Technical:
• Design Factor: 4:1
• Do not use with oil or refined fuel.
• Refer to CrimpSource® for current crimp specifications.

Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	UOM	Color	Hose I.D. (inch)	Media	Maximum Operating Temperature	Hose Inner Tube Material	Application	Specifications Met	Hose Reinforcement Material	Minimum Operating Temperature	Minimum Bend Radius	Cover Material	Inside Diameter	Maximum Operating Pressure	Weight	Nominal Hose Inside Diameter	Outside Diameter	Division	Size	Package Type	Inner Diameter	Working Pressure	Mating Fitting Series	Pkg Qty/UOM	Pkg Qty	Color	Parker Group	Inch/Metric	Parker Division	Inner Diameter Inch/mm	Inner Diameter	Color	Hose Pressure Range	Mating End Fitting Series	Series	Trade Name	Hose Category
7322-125200	6 in stock	417 in stock	$13.59/foot	FT		Red	1-1/4	Water	212 °F	Black	Multipurpose	n/a	2 Plies of Textile	-40 °C	7.5 inch	Ethylene Propylene Diene Monomer (EPDM)	31.8 mm	1.4 MPa	0.71 lb/ft	32 mm	1.740 inch	Hose Products Division	-20
7322-150200	Backordered	110 in stock	$20.53/foot	FT	FT	Red	1-1/2	Water	100 °C	Ethylene Propylene Diene Monomer (EPDM)	Multipurpose	n/a	2 Plies of Textile	-40 °F	8.5 inch	Ethylene Propylene Diene Monomer (EPDM)	1-1/2 inch	13.8 bar	0.82 lb/ft	40 mm	50.4 mm	Hose Products Division	-24	Coil	1.5 Inch	200 PSI (14 bar)	43	200 FT	200	Red	Fluid Connector	Inch	Hose Products	Inch	1.5 Inch	Red	Low	43	7322	SUPER-LOK GS™	General Service Air & Water
7322-200200	Backordered	980 in stock	$28.34/foot	FT	FT	Red	2	Air including oil mist	100 °C	Black	Multipurpose	n/a	Mutiple Plies of Textile	-40 °C	304.8 mm	Ethylene Propylene Diene Monomer (EPDM)	50.8 mm	13.8 bar	1.23 lb/ft	50 mm	65.2 mm	Hose Products Division	-32	Coil	2 Inch	200 PSI (14 bar)	43	200 FT	200	Red	Fluid Connector	Inch	Hose Products	Inch	2 Inch	Red	Low	43	7322	SUPER-LOK GS™	General Service Air & Water
7323-125200	Backordered	1431 in stock	$17.55/foot	FT	FT	Black	1-1/4	Water	100 °C	Ethylene Propylene Diene Monomer (EPDM)	Air	n/a	2 Plies of Textile	-40 °C	190.5 mm	Ethylene Propylene Diene Monomer (EPDM)	31.8 mm	1.4 MPa	0.71 lb/ft	32 mm	1.740 inch	Hose Products Division	-20	Coil	1.25 Inch	200 PSI (14 bar)	HY	200 FT	200	Black	Fluid Connector	Inch	Hose Products	Inch	1.25 Inch	Black	Low	43	7323	SUPER-LOK GS™	General Service Air & Water
7323-150200	22 in stock	1087 in stock	$14.89/foot	FT	FT	Black	1-1/2	Air including oil mist	212 °F	ARPM Class C Oil Resistance	Air	n/a	2 Plies of Textile	-40 °F	8.5 inch	Ethylene Propylene Diene Monomer (EPDM)	38.1 mm	13.8 bar	0.82 lb/ft	40 mm	1.990 inch	Hose Products Division	-24	Coil	1.5 Inch	200 PSI (14 bar)	43	200 FT	200	Black	Fluid Connector	Inch	Hose Products	Inch	1.5 Inch	Black	Low	43	7323	SUPER-LOK GS™	General Service Air & Water
7323-200200	Backordered	234 in stock	$26.09/foot	FT	FT	Black	2	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	212 °F	Black	Multipurpose	n/a	Mutiple Plies of Textile	-40 °F	304.8 mm	Ethylene Propylene Diene Monomer (EPDM)	50.8 mm	200 psi	1.23 lb/ft	50 mm	2.570 inch	Hose Products Division	-32	Coil	2 Inch	200 PSI (14 bar)	43	200 FT	200	Black	Fluid Connector	Inch	Hose Products	Inch	2 Inch	Black	Low	43	7323	SUPER-LOK GS™	General Service Air & Water
