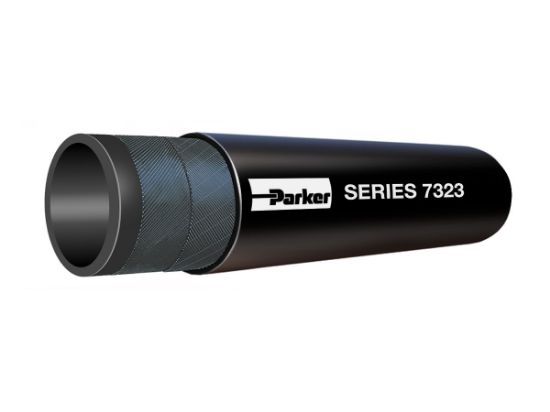

7323-200200 - SUPER-FLEX® GS LARGE DIAMETER GENERAL SERVICE AIR & WATER HOSE

Super-Flex GS Large Diameter General Service Air & Water Hose is designed for transfer of air, mild chemicals and water in applications to 212°F and 200 psi

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	234 in stock

SKU 7323-200200

$26.09/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	2	Specifications Met	n/a
Application	Multipurpose	Minimum Bend Radius	304.8 mm
Minimum Operating Temperature	-40 °F	Hose Reinforcement Material	Mutiple Plies of Textile
Weight	1.23 lb/ft	Outside Diameter	2.570 inch
Maximum Operating Pressure	200 psi	Inside Diameter	50.8 mm
Nominal Hose Inside Diameter	50 mm	Maximum Operating Temperature	212 °F
Size	-32	Hose Inner Tube Material	Black
Division	Hose Products Division	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Media	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	UOM	FT
Working Pressure	200 PSI (14 bar)	Inner Diameter	2 Inch
Package Type	Coil	Pkg Qty/UOM	200 FT
Color	Black	Pkg Qty	200
Mating Fitting Series	43	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter Inch/mm	Inch	Inner Diameter	2 Inch
Color	Black	Hose Pressure Range	Low
Mating End Fitting Series	43	Series	7323
Trade Name	SUPER-LOK GS™	Hose Category	General Service Air & Water

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
