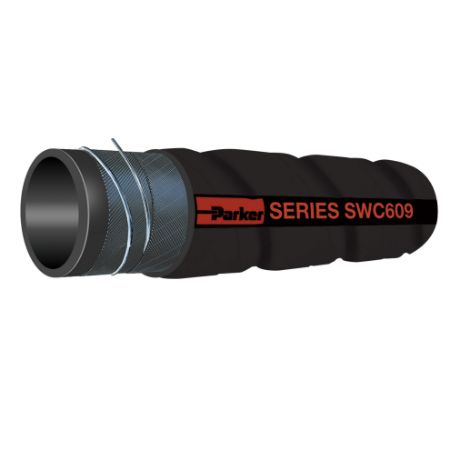

TITANFLEX® CORRUGATED PETROLEUM TRANSPORT SUCTION HOSE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Titanflex Corrugated Petroleum Transport Suction Hose provides excellent service across a wide variety of medium pressure, standard duty tank truck applications. The lightweight, corrugated construction provides crush resistance and kink resistance for unimpeded flow, superior flexibility for easy handling and operator convenience, and resistance to abrasion and weathering for maximum performance.

Markets:
• General Industrial
• Oil & Gas
• Transportation

Features/Benefits:
• Tube: Black nitrile for fuel and oil resistance to 200°F.
• Reinforcement: Multiple textile plies for strength and durability, and a dual wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black or red nitrile for abrasion, heat, oil resistance and durability.

Applications:
• Biodiesel (to B100 in dedicated service)
• Brine
• Crude oil
• Diesel
• Ethanol
• Gasoline
• Mild chemicals
• Petroleum waste
• Sediments
• Sludge
• Slurries
• Water
• Bulk depots and storage facilities
• Service trucks
• Transport tank trucks

Safety/Technical:
• Design Factor: 4:1
• Refer to CrimpSource® for current crimp specifications.

Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use for oil or fuel transfer service in or on open water.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Color	Hose I.D. (inch)	Size	Division	Maximum Operating Temperature	Hose Inner Tube Material	Media	Cover Material	Minimum Operating Temperature	Hose Reinforcement Material	Cover Structure	Minimum Bend Radius	Nominal Hose Inside Diameter	Application	Maximum Operating Pressure	Inside Diameter	Vacuum Pressure Rating	Outside Diameter	Weight
SWC609-1250	Backordered	Backordered	$15.44/foot	FT	Black	1-1/4	-20	Hose Products Division	180 °F	Nitrile	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.	Nitrile	-40 °F	Multiple Plies of Textile with Dual Wire Helix	Corrugated	33 mm	32 mm	Petroleum Transfer	1.7 MPa	31.8 mm	29 Inch-Hg	1.690 inch	0.94 kg/m
SWC609-1500	Backordered	302 in stock	$23.70/foot	FT	Black	1-1/2	-24	Hose Products Division	180 °F	Nitrile	Lubricants (Oils)	Nitrile	-40 °F	Multiple Plies of Textile with Dual Wire Helix	Corrugated	38 mm	40 mm	Petroleum Transfer	17.2 bar	38.1 mm	737 mm-Hg	1.950 inch	0.78 lb/ft
SWC609-2000	Backordered	295 in stock	$25.78/foot	FT	Black	2	-32	Hose Products Division	82 °C	Black	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.	Nitrile	-40 °F	Multiple Plies of Textile with Dual Wire Helix	Corrugated	2 inch	50 mm	Petroleum Transfer	17.2 bar	50.8 mm	737 mm-Hg	62.2 mm	1 lb/ft
SWC609-2500	Backordered	75 in stock	$31.76/foot	FT	Black	2-1/2	-40	Hose Products Division	180 °F	Nitrile	Fuels (Diesel) - Check fuel type with our catalogue chart.	Nitrile	-40 °F	Multiple Plies of Textile with Dual Wire Helix	Corrugated	64 mm	65 mm	Petroleum Transfer	200 psi	63.5 mm	737 mm-Hg	76.2 mm	1.44 lb/ft
SWC609-3000	112 in stock	515 in stock	$26.11/foot	FT	Black	3	-48	Hose Products Division	82 °C	Nitrile	Fuels (Biodiesel (to B100 in dedicated service)	Nitrile	-40 °F	Multiple Plies of Textile with Dual Wire Helix	Corrugated	76 mm	80 mm	Petroleum Transfer	1.4 MPa	76.2 mm	29 Inch-Hg	3.580 inch	2.53 kg/m
SWC609-4000	Backordered	792 in stock	$47.50/foot	FT	Black	4	-64	Hose Products Division	180 °F	Nitrile	Fuels (Diesel) - Check fuel type with our catalogue chart.	Nitrile	-40 °C	Multiple Plies of Textile with Dual Wire Helix	Corrugated	4 inch	100 mm	Petroleum Transfer	10.3 bar	101.6 mm	737 mm-Hg	4.630 inch	3.59 kg/m
SWC609-6002	Backordered	Backordered	$53.62/foot	FT	Black	6	-80	Hose Products Division	180 °F	Nitrile	Fuels (Diesel) - Check fuel type with our catalogue chart.	Nitrile	-40 °C	Multiple Plies of Textile with Dual Wire Helix	Corrugated	305 mm	150 mm	Petroleum Transfer	150 psi	152.4 mm	29 Inch-Hg	171.5 mm	7.08 kg/m
SWC609-8002	Backordered	192 in stock	$90.21/foot	FT	Black	8	-96	Hose Products Division	82 °C	Black	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.	Nitrile	-40 °C	Multiple Plies of Textile with Dual Wire Helix	Corrugated	16 inch	200 mm	Petroleum Transfer	1 MPa	209.2 mm	29 Inch-Hg	223.3 mm	6.95 lb/ft
SWC609R-2000	Backordered	71 in stock	$28.45/foot	FT	Red	2	-32	Hose Products Division	82 °C	Nitrile	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.	Nitrile	-40 °C	Multiple Plies of Textile with Dual Wire Helix	Corrugated	2 inch	50 mm	Petroleum Transfer	1.7 MPa	50.8 mm	737 mm-Hg	2.450 inch	1 lb/ft
SWC609R-3000	Backordered	76 in stock	$36.61/foot	FT	Red	3	-48	Hose Products Division	180 °F	Nitrile	Fuels (Diesel) - Check fuel type with our catalogue chart.	Nitrile	-40 °F	Multiple Plies of Textile with Dual Wire Helix	Corrugated	76 mm	80 mm	Petroleum Transfer	200 psi	3 inch	737 mm-Hg	3.580 inch	2.53 kg/m
SWC609R-4000	Backordered	143 in stock	$50.44/foot	FT	Red	4	-64	Hose Products Division	180 °F	Black	Fuels (Biodiesel (to B100 in dedicated service)	Nitrile	-40 °F	Multiple Plies of Textile with Dual Wire Helix	Corrugated	152 mm	100 mm	Petroleum Transfer	10.3 bar	4 inch	29 Inch-Hg	117.5 mm	3.59 kg/m
