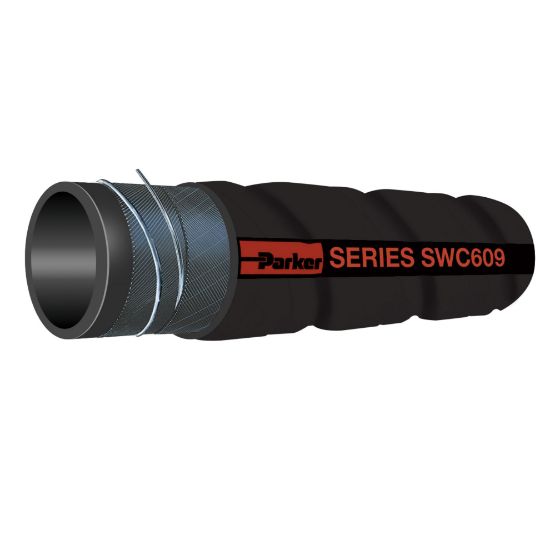

SWC609-6002 - TITANFLEX® CORRUGATED PETROLEUM TRANSPORT SUCTION HOSE

Titanflex Corrugated Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 200°F and 250 psi

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU SWC609-6002

$53.62/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	6
Color	Black	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Application	Petroleum Transfer	Outside Diameter	171.5 mm
Nominal Hose Inside Diameter	150 mm	Maximum Operating Pressure	150 psi
Weight	7.08 kg/m	Inside Diameter	152.4 mm
Vacuum Pressure Rating	29 Inch-Hg	Division	Hose Products Division
Size	-80	Maximum Operating Temperature	180 °F
Hose Inner Tube Material	Nitrile	Media	Fuels (Diesel) - Check fuel type with our catalogue chart.
Minimum Operating Temperature	-40 °C	Cover Material	Nitrile
Cover Structure	Corrugated	Minimum Bend Radius	305 mm

Product resources

Literature and Reference Materials
