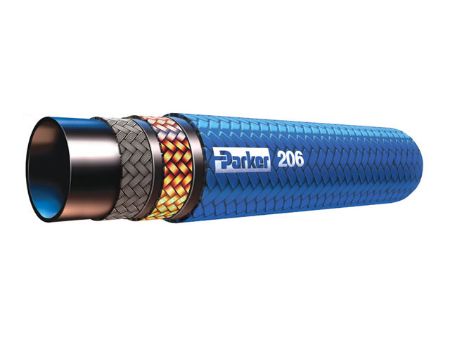

Transportation Hose 350-3000 PSI - 206 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 206 hose is a transportation hose that has a pressure range of 350-3000 PSI and is reinforced with one steel braid and one fiber braid making it excellent for rugged transportation applications. The braided fiber cover provides additional protection. The 206 hose is designed, built, and tested to meet SAE J517 100R5 / SAE J1402 AII / DOT FMVSS 106 AIR BRAKE - AII performance specifications. Sizes range from 3/16” to 2-3/8” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 350-3000 PSI in different sizes
• Field attachable or Parkrimp fittings to fit your specific needs
• DOT FMVSS 106 AIR BRAKE - AII certification
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
Compatible Fittings:
• 26 series fittings
• 20 series fittings
• 22 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Division | Application | Media | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Weight | Outside Diameter | Cover Material | Inside Diameter | Compatible Fitting | Minimum Bend Radius | Hose Inner Tube Material | Hose Reinforcement Material | Cover Color | Nominal Hose Inside Diameter | Material | Pkg Qty/UOM | Pkg Qty | Inner Diameter | Working Pressure | Mating Fitting Series | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Working Pressure Range | Application | Hose Pressure Range | Mating End Fitting Series | Hose Category | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 206-10 | Backordered | 1806 in stock | $27.19/foot | FT | FT | -10 | Hose Products Division | Diesel Fuels | Petroleum Hydraulic Fluids (Petroleum Base) | 12.2 MPa | 302 °F | -55 °F | SAE 100R5 | 0.55 kg/m | 23 mm | Braid of Fiber | 1/2 inch | 26 Series | 4 inch | PKR® Rubber | 1 Braid of Fiber and 1 Braid of Steel Wire | Blue | 12 mm | Rubber | 200 FT | 200 | 0.875 Inch | 1750 PSI (120 bar) | 26, 20, 22 | Fluid Connector | Inch | Hose Products | 0.875 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-12 | Backordered | 1690 in stock | $33.30/foot | FT | FT | -12 | Hose Products Division | Lubricating Oils | Petroleum Hydraulic Fluids (Petroleum Base) | 10.5 MPa | 302 °F | -48 °C | SAE 100R5 | 0.60 kg/m | 1.080 inch | Braid of Fiber | 16 mm | 22 Series | 100 mm | PKR® Rubber | Braid of Fiber | Blue | 16 mm | Rubber | 180 FT | 180 | 0.5 Inch | 1500 PSI (100 bar) | 26, 20, 22 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-16 | Backordered | 4741 in stock | $39.64/foot | FT | FT | -16 | Hose Products Division | Diesel Fuels | Fuels (Diesel Fuels & Antifreeze Solutions) | 800 psi | 150 °C | -55 °F | D.O.T. FMVSS 106, Class AII Air Brake | 0.46 lb/ft | 1.230 inch | Braid of Fiber | 7/8 inch | 26 Series | 100 mm | PKR® Rubber | Braid of Fiber | Blue | 22 mm | Rubber | 150 FT | 150 | 0.875 Inch | 800 PSI (60 bar) | 26, 20, 22 | Fluid Connector | Inch | Hose Products | 0.875 Inch | Inch | Rubber | 500 to 999 PSI (34 to 69 bar | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-20 | 185 in stock | 1612 in stock | $38.65/foot | FT | FT | -20 | Hose Products Division | Lubricating Oils | Lubricants (Oils) | 4.3 MPa | 302 °F | -55 °F | D.O.T. FMVSS 106, Class AII Air Brake | 0.51 lb/ft | 1.5 inch | Braid of Fiber | 29 mm | 22 Series | 140 mm | PKR® Rubber | 1 Braid of Fiber and 1 Braid of Steel Wire | Blue | 29 mm | Rubber | 50 FT | 50 | 1.125 Inch | 625 PSI (40 bar) | 26, 20, 22 | Fluid Connector | Inch | Hose Products | 1.125 Inch | Inch | Rubber | 500 to 999 PSI (34 to 69 bar | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-24 | 6 in stock | 2177 in stock | $46.29/foot | FT | FT | -24 | Hose Products Division | Antifreeze Solutions | Lubricants (Oils) | 500 psi | 302 °F | -55 °F | SAE J1402, Class AII | 1.01 kg/m | 1.750 inch | Braid of Fiber | 1-3/8 inch | 20 Series | 190 mm | PKR® Rubber | Braid of Fiber | Blue | 35 mm | Rubber | 125 FT | 125 | 1.375 Inch | 500 PSI (30 bar) | 26, 20, 22 | Fluid Connector | Inch | Hose Products | 1.375 Inch | Inch | Rubber | 500 to 999 PSI (34 to 69 bar | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-32 | Backordered | 807 in stock | $75.31/foot | FT | FT | -32 | Hose Products Division | Lubricating Oils | Petroleum Hydraulic Fluids (Petroleum Base) | 350 psi | 302 °F | -48 °C | SAE 100R5 | 1.32 kg/m | 2.220 inch | Braid of Fiber | 46 mm | 20 Series | 13-1/4 inch | PKR® Rubber | Braid of Fiber | Blue | 46 mm | Rubber | 66 FT | 66 | 1.813 Inch | 350 PSI (20 bar) | 26, 20, 22 | Fluid Connector | Inch | Hose Products | 1.813 Inch | Inch | Rubber | 250 to 499 PSI (17 to 34 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-4 | Backordered | 2333 in stock | $19.08/foot | FT | FT | -4 | Hose Products Division | Petroleum Base Hydraulic Fluids | Petroleum Hydraulic Fluids (Petroleum Base) | 3000 psi | 150 °C | -48 °C | SAE 100R5 | 0.15 lb/ft | 13 mm | Braid of Fiber | 5 mm | 20 Series | 3 inch | PKR® Rubber | 1 Braid of Fiber and 1 Braid of Steel Wire | Blue | 5 mm | Rubber | 350 FT | 350 | 0.188 Inch | 3000 PSI (210 bar) | 26, 20, 22 | Fluid Connector | Inch | Hose Products | 0.188 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-40 | Backordered | 30 in stock | $111.15/foot | FT | FT | -40 | Hose Products Division | Antifreeze Solutions | Fuels (Diesel Fuels & Antifreeze Solutions) | 350 psi | 150 °C | -55 °F | SAE J1402, Class AII | 1.31 lb/ft | 2.880 inch | Braid of Fiber | 2-3/8 inch | 20 Series | 610 mm | PKR® Rubber | Braid of Fiber | Blue | 60 mm | Rubber | 60 FT | 60 | 2.375 Inch | 350 PSI (20 bar) | 26, 20, 22 | Fluid Connector | Inch | Hose Products | 2.375 Inch | Inch | Rubber | 250 to 499 PSI (17 to 34 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-5 | Backordered | 34 in stock | $51.81/foot | FT | FT | -5 | Hose Products Division | Diesel Fuels | Petroleum Hydraulic Fluids (Petroleum Base) | 21 MPa | 150 °C | -55 °F | D.O.T. FMVSS 106, Class AII Air Brake | 0.27 kg/m | 0.580 inch | Braid of Fiber | 6.3 mm | 26 Series | 85 mm | PKR® Rubber | 1 Braid of Fiber and 1 Braid of Steel Wire | Blue | 6 mm | Rubber | 325 FT | 325 | 0.25 Inch | 3000 PSI (210 bar) | 26, 20, 22 | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-6 | Backordered | 1679 in stock | $20.97/foot | FT | FT | -6 | Hose Products Division | Petroleum Base Hydraulic Fluids | Petroleum Hydraulic Fluids (Petroleum Base) | 15.7 MPa | 302 °F | -48 °C | SAE J1402, Class AII | 0.23 lb/ft | 17 mm | Braid of Fiber | 5/16 inch | 26 Series | 90 mm | PKR® Rubber | Braid of Fiber | Blue | 8 mm | Rubber | 300 FT | 300 | 0.313 Inch | 2250 PSI (160 bar) | 26, 20, 22 | Fluid Connector | Inch | Hose Products | 0.313 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 | |
| 206-8 | Backordered | 2221 in stock | $22.13/foot | FT | FT | -8 | Hose Products Division | Antifreeze Solutions | Lubricants (Oils) | 14 MPa | 150 °C | -48 °C | SAE 100R5 | 0.40 kg/m | 0.770 inch | Braid of Fiber | 10 mm | 22 Series | 3-1/2 inch | PKR® Rubber | Braid of Fiber | Blue | 10 mm | Rubber | 250 FT | 250 | 0.406 Inch | 2000 PSI (140 bar) | 26, 20, 22 | Fluid Connector | Inch | Hose Products | 0.406 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Transportation | Low | 26, 20, 22 | Transportation | 206 |
