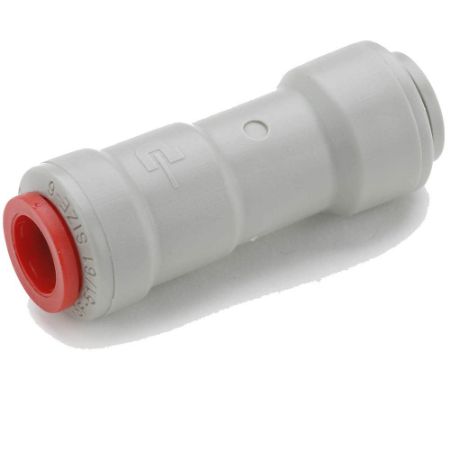

TrueSeal Acetal & Kynar Check Valves - Push to Connect

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Push-to-Connect check valves ensure protection against reversal of flow. Valves are designed for connection with either thermoplastic or soft metal tubing and are intended for use with liquids only. The valves have an arrow molded into the body to indicate the direction of flow.

Markets:
• Food
• Potable Water
• Chemical
• Filtration

Features/Benefits:
• FDA Compliant NSF/ANSI 51
• Gray Acetal NSF/ANSI 61
• Compact
• Lightweight
• Symbol showing the operating direction of flow

Applications:
• Water
• Soft Drinks
• Beer/Wine
• Dyes

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Connection 1 Tube Outside Diameter	Configuration	Cracking Pressure	Body Material	Collet Material	Connection 2 Tube Outside Diameter	For Fluid Type	Maximum Operating Temperature	Division	Seal Material	Gripping Ring Material	Connection 2 Size	Shape	Body Material	Connection Type	Application	Connection 1 Type	Maximum Operating Pressure	Configuration	Valve Configuration	Connection 1 Size	Cracking Pressure	Connection 2 Type	Minimum Operating Temperature	Connection 2 Thread Size
A4VC4-MG	Backordered	99 in stock	$14.06/each	EA	1/4" (O.D.)	Tube to Tube	1/3	Acetal	Red	1/4" (O.D.)	Water	65 °C	Fluid System Connectors Division	EPDM	Stainless Steel	n/a	In-Line	Acetal	n/a	Textile	Push-to-Connect	145 psi	Tube to Tube	One Way	1/4 inch Tube O.D.	1/3 psi	Push-to-Connect	1 °C
A5VC5-MG	Backordered	3 in stock	$14.34/each	EA	5/16" (O.D.)	Tube to Tube	1/3	Acetal	Red	5/16" (O.D.)	Food & Beverage (Beer, Wine)	65 °C	Fluid System Connectors Division	EPDM	Stainless Steel	n/a	In-Line	Acetal	n/a	Textile	Push-to-Connect	10 bar	Tube to Tube	One Way	n/a	1/3 psi	Push-to-Connect	1 °C
A6VC6-MG	Backordered	149 in stock	$15.78/each	EA	3/8" (O.D.)	Tube to Tube	1/3	Acetal	Red	3/8" (O.D.)	Wine	65 °C	Fluid System Connectors Division	EPDM	Stainless Steel	3/8 inch Tube O.D.	In-Line	Acetal	n/a	Pneumatics	Push-to-Connect	10 bar	Tube to Tube	One Way	n/a	1/3 psi	Push-to-Connect	34 °F
A8VC8-MG	Backordered	33 in stock	$17.25/each	EA	1/2" (O.D.)	Tube to Tube	1/3	Acetal	Red	1/2" (O.D.)	Beer	65 °C	Fluid System Connectors Division	EPDM	Stainless Steel	n/a	In-Line		n/a	Filtration	Push-to-Connect	145 psi		One Way	n/a		Push-to-Connect	34 °F
FB6MCVC4-HBLK-05	Backordered	Backordered	$19.27/each	EA	3/8" (O.D.)	Tube to NPTF	0.5 Psi	Kynar®	Black		Beer	250 °F	Fluid System Connectors Division	Fluorocarbon	Stainless Steel	1/4 inch Tube O.D.	In-Line	PVDF (Kynar)	n/a	Potable Water	Push-to-Connect	20.7 bar	Tube to Tube	One Way	n/a	0.5 psi	NPTF Thread	0 °F	1/4"
