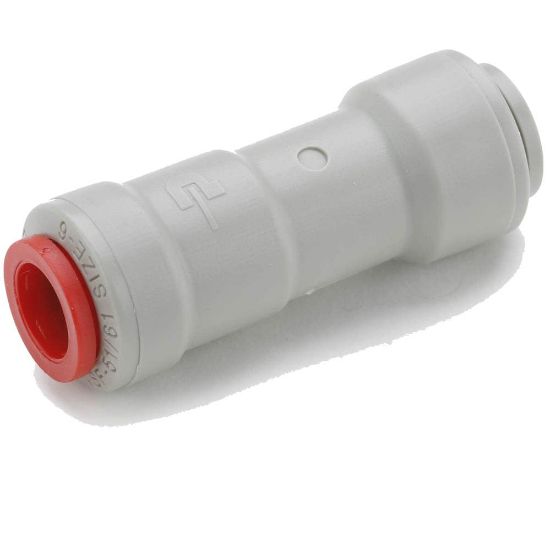

A5VC5-MG - TrueSeal Acetal & Kynar Check Valves - Push to Connect

Parker's Push-to-Connect check valves are manufactured from either acetal or kynar material and allow liquid to flow in one direction.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 42 days
Partner Available:	3 in stock

SKU A5VC5-MG

$14.34/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Cracking Pressure	1/3
Configuration	Tube to Tube	Connection 2 Tube Outside Diameter	5/16" (O.D.)
Body Material	Acetal	Connection 1 Tube Outside Diameter	5/16" (O.D.)
Collet Material	Red	Division	Fluid System Connectors Division
Connection Type	n/a	For Fluid Type	Food & Beverage (Beer, Wine)
Seal Material	EPDM	Connection 2 Size	n/a
Gripping Ring Material	Stainless Steel	Maximum Operating Temperature	65 °C
Maximum Operating Pressure	10 bar	Configuration	Tube to Tube
Body Material	Acetal	Connection 1 Type	Push-to-Connect
Shape	In-Line	Minimum Operating Temperature	1 °C
Connection 2 Type	Push-to-Connect	Application	Textile
Cracking Pressure	1/3 psi	Connection 1 Size	n/a
Valve Configuration	One Way

Product resources

Literature and Reference Materials

Water & Beverage Products Quick Reference Guide - Water-QRG (PDF)
