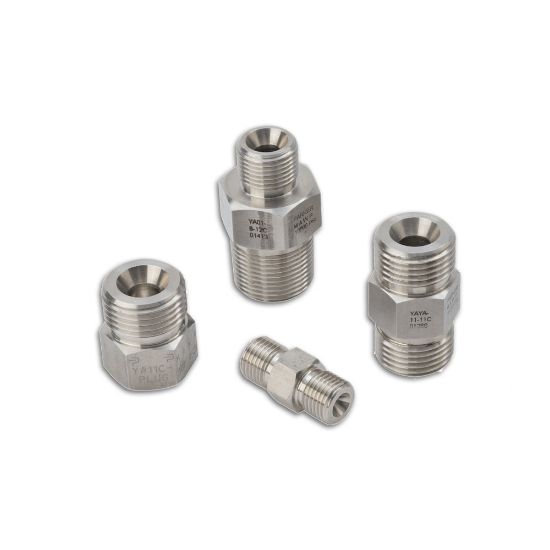

YAY1-8-16C - Type "M" Fitting Adapters

These fitting adapters connect to Type "M" Swivel end fittings and seal with a 58° cone.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU YAY1-8-16C

$478.47/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Style	Torpedo
Connection 2 Thread Size	1"-14 UNS-LH	Connection 2 Type	Torpedo
Connection 1 Thread Size	3/4"-16 UNF	Connection 2 Size	3/4"-16 inch
Division	Parflex Division	Connection 1 Size	3/4"-16 inch
Hex Size	1.13 inch	Materials of Construction	Stainless Steel AISI 316
Connection 2 Type	Torpedo	Maximum Operating Pressure	138 MPa
Overall Length	3.56 inch	Connection 1 Type	UNF Thread

Product resources

Literature and Reference Materials

Catalog 4900 - Parflex Ultra High Pressure Thermoplastic Hose, Fittings and Accessories--CAT-4900 (PDF)
