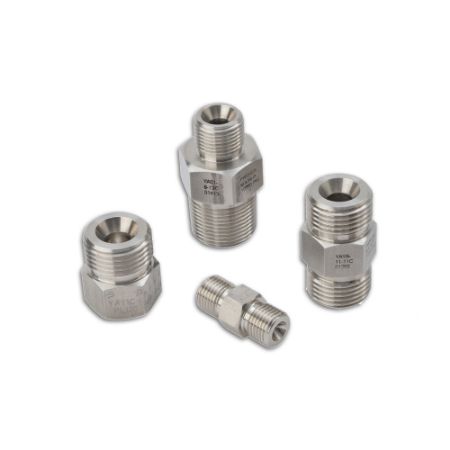

Type "M" Fitting Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Type "M" fitting adapters provide a quick and easy connection for hose assemblies. These are our highest rated adapters - rated to the full working pressure of the hose or hose end connection. Type "M" fitting adapters are versitile and ideal for any application where ease of connection and working pressure are important.

Markets:
• Waterblast / Water Jetting
• Hydraulics
• Oil & Gas

Features/Benefits:
• Provides a swivel for quick and easy connection
• Internal threads and seal are protected from external damage
• Non-rotating seal reduces galling and minimizes tightening torque
• Can be adapted to almost any connection required

Applications:
• Any system requiring Type "M" connections for hose assemblies

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Connection 1 Thread Size	Connection 1 Style	Connection 2 Type	Connection 2 Thread Size	Connection 2 Size	Connection 2 Type	Hex Size	Connection 1 Size	Connection 1 Type	Maximum Operating Pressure	Overall Length	Materials of Construction	Division	Connection 1 Type
YAY1-11-16C	Backordered	Backordered	$516.53/each	EA	1"-12 UNF	Torpedo	Torpedo	1"-14 UNS-LH	1"-12 inch	UNF Thread	28.7 mm	1"-12 inch	Torpedo	20000 psi	3.56 inch	Stainless Steel AISI 316	Parflex Division
YAY1-16-16C	Backordered	Backordered	$507.50/each	EA	1-5/16"-12 UNF	Torpedo	Torpedo	1"-14 UNS-LH	1-5/16"-12 inch	UNF Thread	1.38 inch	1-5/16"-12 inch	Torpedo	20000 psi	93.98 mm	Stainless Steel AISI 316	Parflex Division
YAY1-8-16C	Backordered	Backordered	$478.47/each	EA	3/4"-16 UNF	Torpedo	Torpedo	1"-14 UNS-LH	3/4"-16 inch	Torpedo	1.13 inch	3/4"-16 inch	UNF Thread	138 MPa	3.56 inch	Stainless Steel AISI 316	Parflex Division
YAY2-11-16C	Backordered	Backordered	$409.79/each	EA	1"-12 UNF	Torpedo with Gland Nut and Collar	Torpedo with Gland Nut and Collar	1"-14 UNS-LH	1"-12 inch	Torpedo with Gland Nut and Collar	35.05 mm	1"-12 inch	Torpedo with Gland Nut and Collar	20000 psi	90.42 mm	Stainless Steel AISI 316	Parflex Division
YAY2-16-16C	Backordered	Backordered	$430.27/each	EA	1-5/16"-12 UNF	Torpedo with Gland Nut and Collar	Torpedo with Gland Nut and Collar	1"-14 UNS-LH	1-5/16"-12 inch	UNF Thread	35.05 mm	1-5/16"-12 inch	Torpedo with Gland Nut and Collar	20000 psi	93.98 mm	Stainless Steel AISI 316	Parflex Division
YAY2-8-16C	Backordered	Backordered	$375.85/each	EA	3/4"-16 UNF	Torpedo with Gland Nut and Collar	Torpedo with Gland Nut and Collar	1"-14 UNS-LH	3/4"-16 inch	UNF Thread	1.38 inch	3/4"-16 inch	UNF Thread	138 MPa	3.56 inch	Stainless Steel AISI 316	Parflex Division
YAY5-11-12C	Backordered	Backordered	$206.92/each	EA	1"-12 UNF		Male Medium Pressure	3/4"-14 NPSM	3/4"-14 inch	Male	1.13 inch	1"-12 inch	Type "M"	138 MPa	2.44 inch	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY5-11-6C	Backordered	Backordered	$303.94/each	EA	1"-12 UNF		Male Medium Pressure	9/16"-18 UNF	9/16"-18 inch	Male	1 inch	1"-12 inch	UNF Thread	20000 psi	50.8 mm	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY5-11-9C	Backordered	1 Limited Stock	$239.73/each	EA	1"-12 UNF		Male Medium Pressure	13/16"-16 UNF	13/16"-16 inch	Male	25.4 mm	1"-12 inch	Male	20000 psi	2.25 inch	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY5-6-12C	Backordered	Backordered	POR	EA	9/16"-18 UNF		Male Medium Pressure	3/4"-14 NPSM	3/4"-14 inch	Male	28.7 mm	9/16"-18 inch	UNF Thread	20000 psi	2.32 inch	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY5-6-4C	Backordered	Backordered	$153.50/each	EA	9/16"-18 UNF		Male Medium Pressure	7/16"-20 UNF	7/16"-20 inch	UNF Thread	16 mm	9/16"-18 inch	Type "M"	138 MPa	1.56 inch	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY5-6-6C	Backordered	Backordered	$147.79/each	EA	9/16"-18 UNF		Male Medium Pressure	9/16"-18 UNF	9/16"-18 inch	Medium Pressure	16 mm	9/16"-18 inch	Type "M"	20000 psi	41.4 mm	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY5-6-9C	Backordered	Backordered	$149.74/each	EA	9/16"-18 UNF		Male Medium Pressure	13/16"-16 UNF	13/16"-16 inch	Medium Pressure	22.35 mm	9/16"-18 inch	Type "M"	20000 psi	2 inch	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY5-8-12C	Backordered	Backordered	$219.27/each	EA	3/4"-16 UNF		Male Medium Pressure	3/4"-14 NPSM	3/4"-14 inch	NPS Thread	28.7 mm	3/4"-16 inch	UNF Thread	138 MPa	61.98 mm	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY5-8-9C	Backordered	Backordered	$162.53/each	EA	3/4"-16 UNF		Male Medium Pressure	13/16"-16 UNF	13/16"-16 inch	Medium Pressure	0.88 inch	3/4"-16 inch	Type "M"	138 MPa	55.88 mm	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY6-10-9C	Backordered	Backordered	$292.69/each	EA	7/8"-14 UNF		Male High Pressure	1-1/8"-12 UNF	1-1/8"-12 inch	UNF Thread	1.13 inch	7/8"-14 inch	UNF Thread	60000 psi	60.45 mm	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY6-11-9C	Backordered	9 in stock	$295.54/each	EA	1"-12 UNF		Male High Pressure	1-1/8"-12 UNF	1-1/8"-12 inch	Male	28.7 mm	1"-12 inch	Type "M"	207 MPa	57.15 mm	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY6-6-4C	Backordered	7 in stock	$154.20/each	EA	9/16"-18 UNF		Male High Pressure	9/16"-18 UNF	9/16"-18 inch	UNF Thread	19 mm	9/16"-18 inch	Male	60000 psi	1.55 inch	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY6-6-6C	Backordered	3 in stock	$199.74/each	EA	9/16"-18 UNF		Male High Pressure	3/4"-16 UNF			0.75 inch			414 MPa	1.75 inch	Stainless Steel AISI 316	Parflex Division	Male Type "M"
YAY6-6-9C	Backordered	Backordered	$204.94/each	EA	9/16"-18 UNF		Male High Pressure	1-1/8"-12 UNF	1-1/8"-12 inch	Male	28.7 mm	9/16"-18 inch	UNF Thread	414 MPa	2 inch	Stainless Steel AISI 316	Parflex Division	Male Type "M"
