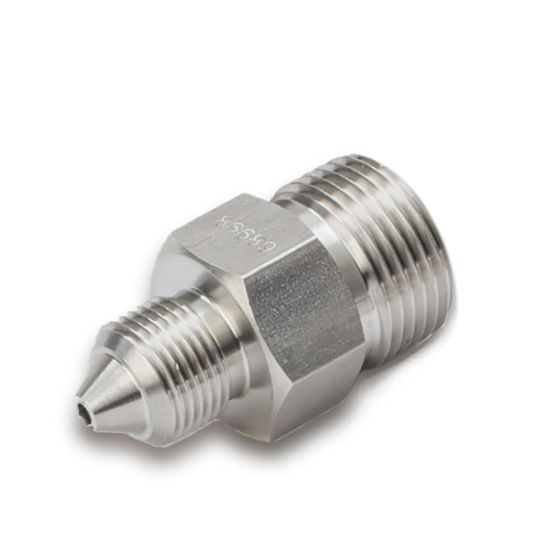

YAY6-10-9C - Type "M" Fitting Adapters

These fitting adapters connect to Type "M" Swivel end fittings and seal with a 58° cone.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU YAY6-10-9C

$292.69/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Male Type "M"
Connection 2 Type	Male High Pressure	Connection 2 Thread Size	1-1/8"-12 UNF
Connection 1 Thread Size	7/8"-14 UNF	Hex Size	1.13 inch
Connection 1 Size	7/8"-14 inch	Connection 2 Type	UNF Thread
Maximum Operating Pressure	60000 psi	Overall Length	60.45 mm
Connection 1 Type	UNF Thread	Materials of Construction	Stainless Steel AISI 316
Connection 2 Size	1-1/8"-12 inch	Division	Parflex Division
