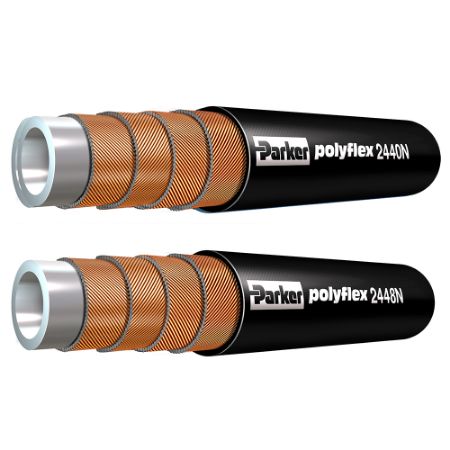

Ultra High Pressure Hose - 2440N/2448N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker Ultra High Pressure Hoses handle high pressures up to 15,000 psi (1,035 bar) with low volumetric expansion. They are flexible, chemical resistant and a lightweight alternative to steel pipe and rubber hose. The V91 hoses are used in offshore applications such as control fluids, acidizing, methanol injection and well stimulation.

Markets:
• Upstream Oil & Gas
• Land-based and offshore
• Industrial markets requiring pressures over 8,000 psi

Features/Benefits:
• Operating pressures up to 15,000 psi (1035 bar)
• Compliant with ISO 13628-5
• Methanol-washed core tube for improved performance in well stimulation

Applications:
• Acidizing
• Control fluids
• Hydraulics
• Methanol injection
• Well stimulation

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Maximum Working Pressure (psi)	Application	Specifications Met	Outside Diameter	Maximum Operating Pressure	Weight	Inside Diameter	Cover Material	Minimum Operating Temperature	Minimum Bend Radius	Hose Reinforcement Material	Compatible Fitting	Maximum Operating Temperature	Hose Inner Tube Material	Media	Design Factor	Division
2440N-06V91	Backordered	Backordered	POR	FT	3/8	12,688	Control Fluids	ISO 13628-5	19.5 mm	875 bar	0.73 kg/m	9.5 mm	Polyurethane	-40 °F	7-1/2 inch	4 Spirals of Maximum Tensile Steel Wire	LX Series	100 °C	Methanol Washed	Chemicals (Methanol) - Check your fluid compatibility with our catalogue chart.	4:1	Parflex Division
2440N-08V91	Backordered	148 in stock	POR	FT	1/2	11,745	Acidizing	ISO 13628-5	0.890 inch	81 MPa	0.63 lb/ft	12.7 mm	Polyurethane	-40 °C	200 mm	4 Spirals of Maximum Tensile Steel Wire	LX Series	212 °F	Methanol Washed	Chemicals (Methanol) - Check your fluid compatibility with our catalogue chart.	4:1	Parflex Division
2440N-12V91	Backordered	Backordered	POR	FT	3/4	10,000	Well Stimulation	ISO 13628-5	30.2 mm	69 MPa	0.98 lb/ft	19 mm	Polyurethane	-40 °F	9-3/4 inch	4 Spirals of Maximum Tensile Steel Wire	LX Series	212 °F	Methanol Washed	Petroleum Hydraulic Fluids	4:1	Parflex Division
2440N-16V91	Backordered	1128 in stock	POR	FT	1	8,120	Well Stimulation	ISO 13628-5	1.460 inch	8120 psi	1.34 lb/ft	25.4 mm	Polyurethane	-40 °F	300 mm	4 Spirals of Maximum Tensile Steel Wire	LX Series	100 °C	Polyamide 11	Water	4:1	Parflex Division
2448N-04V91	Backordered	Backordered	POR	FT	1/4	15,000	Well Stimulation	ISO 13628-5	13.7 mm	103.5 MPa	0.38 kg/m	1/4 inch	Polyurethane	-40 °C	150 mm	4 Spirals of Maximum Tensile Steel Wire	8X Series	100 °C	Polyamide 11	Water	4:1	Parflex Division
