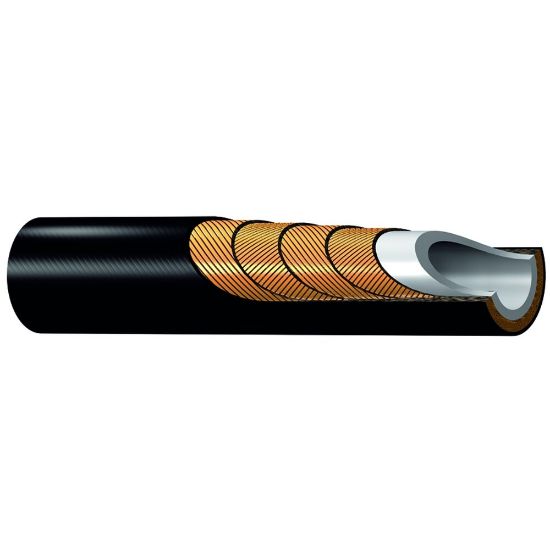

2440N-06V91 - Ultra High Pressure Hose - 2440N/2448N

High pressure Polyflex hose with low volumetric expansion for offshore applications such as, control fluids, acidizing, methanol injection and well stimulation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2440N-06V91

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	12,688	Application	Control Fluids
Specifications Met	ISO 13628-5	Outside Diameter	19.5 mm
Maximum Operating Pressure	875 bar	Weight	0.73 kg/m
Inside Diameter	9.5 mm	Cover Material	Polyurethane
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	7-1/2 inch
Hose Reinforcement Material	4 Spirals of Maximum Tensile Steel Wire	Compatible Fitting	LX Series
Maximum Operating Temperature	100 °C	Hose Inner Tube Material	Methanol Washed
Media	Chemicals (Methanol) - Check your fluid compatibility with our catalogue chart.	Design Factor	4:1
Division	Parflex Division
