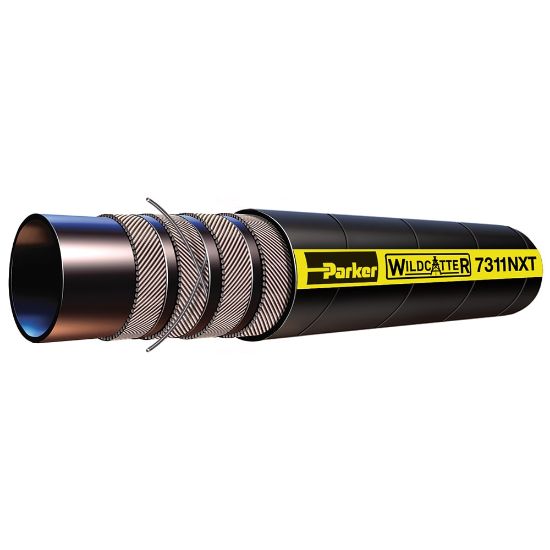

7311N-2000 - WILDCATTER® Oilfield Multipurpose Fracking Hose, Series 7311N/7311NXT

Series 7311N/7311NXT Wildcatter Oilfield Multipurpose Fracking Hose is designed for high pressure transfer of abrasive slurries, drilling mud, fuel, mild chemical solutions, oil and water in applications to 200°F and 400 psi.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU 7311N-2000

$25.26/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Hose Cover Material	Nitrile blend; wrapped finish	Hose Inner Tube Material	Nitrile
Maximum Operating Temperature	200 °F	Division	Hose Products Division
Length per Package	100 ft	Cover Material	Nitrile Blend
Media	Fuels - Check fuel type with our catalogue chart.	Design Factor	4:1
Package Type	Coil	Application	Oilfield
Specifications Met	n/a	Minimum Operating Temperature	-40 °C
Hose Reinforcement Material	4 Plies of Textile with Dual Static Wires	Minimum Bend Radius	n/a
Cover Color	Black	Outside Diameter	2.6 inch
Vacuum Pressure Rating	n/a	Maximum Operating Pressure	400 psi
Weight	1.16 lb/ft	Inside Diameter	2 inch

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
