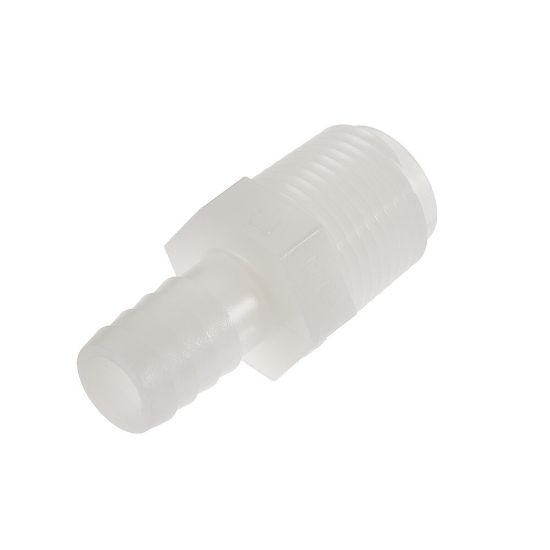

325HB-3-2N - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 325HB-3-2N

$0.57/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Color	White	Connection 2 Size	1/8"
Connection 2 Type	Male Pipe	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	3/16" (I.D.)	Configuration	Barb to Pipe
Product Style	Connector	Connection 2 Thread Size	1/8"
Connection 2 Hose I.D. (inch)	n/a	Connection 1 Size	3/16"
Body Material	Nylon,White	Connection 3 Size	N/A
Connection 3 Type	N/A	Connection 1 Type	Barbed
Compatible Tube	Vinyl	Maximum Operating Temperature	93 °C
Connection 3 Size	N/A	Technology	Fluid & Gas Handling
Media	Water	Division	Fluid System Connectors Division
Connection 2 Size	1/8	Division	Fluid System Connectors Division
For Fluid Type	Water	Dimensional Weight	0.5755 lb
Configuration	Tube to Pipe	Vacuum Pressure Rating	-29
Maximum Operating Pressure	125 psi	Connection 1 Type	Barbed
Shape	Connector	Body Material	Nylon
Color	White	Connection 3 Type	N/A
Connection 1 Size	3/16	Minimum Operating Temperature	-40 °C
Connection 2 Type	Male NPT	Brand	Parker
Specifications Met	NSF 51	Application	Pneumatic Systems
