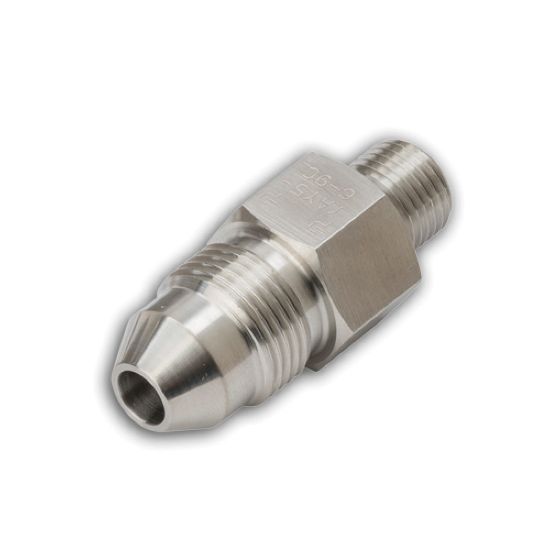

YAY5-6-6C - Type "M" Fitting Adapters

These fitting adapters connect to Type "M" Swivel end fittings and seal with a 58° cone.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU YAY5-6-6C

$147.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size	9/16"-18 UNF
Connection 2 Type	Male Medium Pressure	Connection 1 Type	Male Type "M"
Connection 1 Thread Size	9/16"-18 UNF	Maximum Operating Pressure	20000 psi
Overall Length	41.4 mm	Connection 1 Type	Type "M"
Materials of Construction	Stainless Steel AISI 316	Division	Parflex Division
Connection 2 Size	9/16"-18 inch	Hex Size	16 mm
Connection 1 Size	9/16"-18 inch	Connection 2 Type	Medium Pressure

Product resources

Literature and Reference Materials

Catalog 4900 - Parflex Ultra High Pressure Thermoplastic Hose, Fittings and Accessories--CAT-4900 (PDF)
