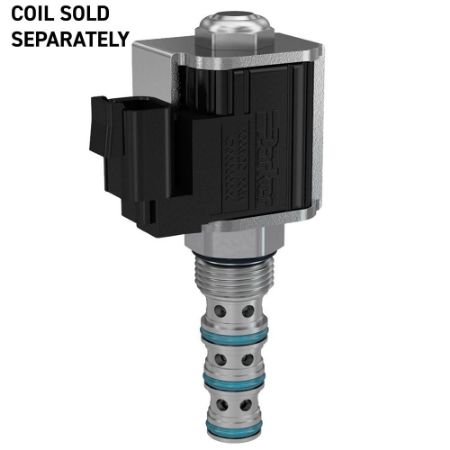

4 Way 2 Position Spool Type Solenoid Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s direct acting 4-way, 2-position spool-type solenoid valves feature a tough design that ensures reliable and predictable performance with low pressure drop and minimal hysteresis. These valves can operate with hydraulic system flows as high as 113 lpm (30 gpm) and pressures up to 350 bar (5000 psi) with normally passing, crossing, or closed configurations available. Parker’s 4-way, 2-position spool-type solenoid valves are ideal for reversing or actuation applications; utilizing easily wired and programmed solenoid driven directional controls. These valves can be used on a wide range of machinery within the mobile, industrial, or manufacturing markets.
Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• Manual override options
• Standard bodies and cavities
• No dynamic seals
• Low hysteresis
• All external parts zinc plated
Applications:
• Reversing flow
• Actuator applications
• Single direction on/off applications
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.
Read More...Markets:
• Aerial
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Replaceable one-piece coils with low amp draw
• High flow capacity
• Manual override options
• Standard bodies and cavities
• No dynamic seals
• Low hysteresis
• All external parts zinc plated
Applications:
• Reversing flow
• Actuator applications
• Single direction on/off applications
Additional Technical Insight:
Direct acting spool valves are fast to respond to coil voltage and can quickly re-direct or block flow to actuator ports. Some leakage will be present due to spool clearances.
| Action | SKU | Availability | Partner Available | Price | UOM | Seal Material | Maximum Inlet Pressure Rating | Actuation Type | Configuration | Flow Rate | Flow Direction | Division | Operating Temperature | Flow Rate | Input Voltage | Actuation Type | Maximum Flow Rate | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Body Material | Seal Material | Flow Direction | Weight | Mounting Type | Operation Type | Filter Efficiency Rating | Configuration | For Fluid Type | Function | Coil Type | Maximum Kinematic Viscosity | Leak Rate | Cavity Size | Valve Material | Installation Torque | Maximum Inlet Pressure Rating | Override Functionality | Response Time | Coil Nut Tightening Torque | Division |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DSH104E4TV | Backordered | Backordered | $148.99/each | EA | Fluorocarbon | 5000 PSI, 350 BAR | Electrical, Manual | N/A | 6.5 GAL/MIN, 25 L/MIN | 3 blocked, 2-4-1 De-Energized, 2-1, 3 and 4 blocked Energized | Hydraulic Systems Division | -26 to +204 °C | 6.5 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical, Manual | 25 L/min | 5000 psi | +204 °C | -26 °C | N/A | Fluorocarbon | 3 blocked, 2-4-1 De-Energized, 2-1, 3-4 Energized | 0.2 kg | Screw in cartridge valve | Solenoid operated, Manually operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 5/8" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 5000 PSI (350 BAR) cm3/min | C10-4 | All parts steel. All operating parts hardened steel | 69-75 Nm | 350 bar | Push and Twist | 30-60 ms | 7-10 Nm | ||
| DSH104M | Backordered | Backordered | $96.79/each | EA | D-Ring (Standard) | 5000 PSI, 350 BAR | Electrical | N/A | 7 GAL/MIN, 27 L/MIN | 2-1, 3-4 De-Energized, All ports blocked Energized | Hydraulic Systems Division | -37 to +93 °C | 27 L/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 7 Gal/min | 350 bar | +200 °F | -35 °F | N/A | D-Ring (Standard) | 2-1, 3-4 De-Energized, All ports blocked Energized | 0.2 kg | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 5/8" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 5000 PSI (350 BAR) cm3/min | C10-4 | All parts steel. All operating parts hardened steel | 69-75 Nm | 350 bar | N/A | 30-60 ms | 7-10 Nm | ||
| DSH104MTN | 1 Limited Stock | Backordered | $143.99/each | EA | Nitrile | 5000 PSI, 350 BAR | Electrical, Manual | N/A | 7 GAL/MIN, 27 L/MIN | 2-1, 3-4 De-Energized, All ports blocked Energized | Hydraulic Systems Division | -30 to +250 °F | 27 L/min | 85% of rated voltage at 72°F (20°C) min | Electrical, Manual | 27 L/min | 5000 psi | +250 °F | -34 °C | N/A | Nitrile | 2-1, 3-4 De-Energized, All ports blocked Energized | 0.44 lb | Screw in cartridge valve | Solenoid operated, Manually operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 5/8" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 5000 PSI (350 BAR) cm3/min | C10-4 | All parts steel. All operating parts hardened steel | 69-75 Nm | 5000 psi | Push and Twist | 30-60 ms | 7-10 Nm | ||
| DSH104N | Backordered | Backordered | $96.57/each | EA | D-Ring (Standard) | 5000 PSI, 350 BAR | Electrical | N/A | 7 GAL/MIN, 27 L/MIN | All ports blocked De-Energized, 2-1, 3-4 Energized | Hydraulic Systems Division | -35 to +200 °F | 27 L/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 27 L/min | 350 bar | +93 °C | -35 °F | N/A | D-Ring (Standard) | All ports blocked De-Energized, 3-2, 4-1 Energized | 0.44 lb | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 5/8" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 5000 PSI (350 BAR) cm3/min | C10-4 | All parts steel. All operating parts hardened steel | 51-55 lb-ft | 350 bar | N/A | 30-60 ms | 5-7 lb-ft | ||
| DSH164H | Backordered | Backordered | $323.64/each | EA | Nitrile | 5000 PSI, 350 BAR | Electrical | N/A | 30 GAL/MIN, 113 L/MIN | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized | Hydraulic Systems Division | -30 to +250 °F | 113 L/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 30 Gal/min | 350 bar | +250 °F | -34 °C | N/A | Nitrile | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized | 1.3 lb | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 350 De-energized, 1.5 GPM Energized Pilot Flow @ 3000 PSI (207 BAR) cm3/min | C16-4 | All parts steel. All operating parts hardened steel | 30-40 lb-ft | 5000 psi | N/A | 130 ms | 7-10 Nm | Hydraulic Cartridge Systems Division | |
| DSH164HR | Backordered | Backordered | $323.64/each | EA | Nitrile | 5000 PSI, 350 BAR | Electrical | Motor Regen Transition | 30 GAL/MIN, 113 L/MIN | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized | Hydraulic Systems Division | -34 to +121 °C | 30 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 113 L/min | 5000 psi | +121 °C | -30 °F | N/A | Nitrile | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized | 0.59 kg | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | Motor Regen Transition | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 350 De-energized, 1.5 GPM Energized Pilot Flow @ 3000 PSI (207 BAR) cm3/min | C16-4 | All parts steel. All operating parts hardened steel | 40.6-54.2 Nm | 5000 psi | N/A | 130 ms | 7-10 Nm | Hydraulic Cartridge Systems Division | |
| DSH164HRV | Backordered | Backordered | $347.13/each | EA | Fluorocarbon | 5000 PSI, 350 BAR | Electrical | Motor Regen Transition | 30 GAL/MIN, 113 L/MIN | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized | Hydraulic Systems Division | -15 to +400 °F | 30 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 30 Gal/min | 5000 psi | +400 °F | -15 °F | N/A | Fluorocarbon | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized | 0.59 kg | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | Motor Regen Transition | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 350 De-energized, 1.5 GPM Energized Pilot Flow @ 3000 PSI (207 BAR) cm3/min | C16-4 | All parts steel. All operating parts hardened steel | 30-40 lb-ft | 5000 psi | N/A | 130 ms | 7-10 Nm | ||
| DSH164HV | Backordered | Backordered | $347.13/each | EA | Fluorocarbon | 5000 PSI, 350 BAR | Electrical | N/A | 30 GAL/MIN, 113 L/MIN | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized | Hydraulic Systems Division | -15 to +400 °F | 113 L/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 113 L/min | 5000 psi | +400 °F | -15 °F | N/A | Fluorocarbon | 2-1, 3-4 De-Energized, 3-2, 4-1 Energized | 0.59 kg | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 350 De-energized, 1.5 GPM Energized Pilot Flow @ 3000 PSI (207 BAR) cm3/min | C16-4 | All parts steel. All operating parts hardened steel | 40.6-54.2 Nm | 350 bar | N/A | 130 ms | 5-7 lb-ft | ||
| DSL084B | Backordered | 120 in stock | $81.71/each | EA | D-Ring (Standard) | 3600 PSI, 250 BAR | Electrical | N/A | 4 GAL/MIN, 15 L/MIN | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Hydraulic Systems Division | -35 to +200 °F | 4 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 4 Gal/min | 3600 psi | +93 °C | -37 °C | N/A | D-Ring (Standard) | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 0.13 kg | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 23-27 lb-ft | 250 bar | N/A | 50 ms | 5-7 lb-ft | ||
| DSL084BP | Backordered | Backordered | $103.75/each | EA | D-Ring (Standard) | 3600 PSI, 250 BAR | Electrical, Manual | N/A | 4 GAL/MIN, 15 L/MIN | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Hydraulic Systems Division | -35 to +200 °F | 4 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical, Manual | 15 L/min | 250 bar | +200 °F | -35 °F | N/A | D-Ring (Standard) | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 0.29 lb | Screw in cartridge valve | Solenoid operated, Manually operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 23-27 lb-ft | 250 bar | Pull and Release | 50 ms | 5-7 lb-ft | ||
| DSL084BT | Backordered | Backordered | $119.25/each | EA | D-Ring (Standard) | 3600 PSI, 250 BAR | Electrical, Manual | N/A | 4 GAL/MIN, 15 L/MIN | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Hydraulic Systems Division | -37 to +93 °C | 4 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical, Manual | 4 Gal/min | 3600 psi | +93 °C | -35 °F | N/A | D-Ring (Standard) | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 0.13 kg | Screw in cartridge valve | Solenoid operated, Manually operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 23-27 lb-ft | 3600 psi | Push and Twist | 50 ms | 5-7 lb-ft | ||
| DSL084BTN | Backordered | Backordered | $109.19/each | EA | Nitrile | 3600 PSI, 250 BAR | Electrical, Manual | N/A | 4 GAL/MIN, 15 L/MIN | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Hydraulic Systems Division | -34 to +121 °C | 4 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical, Manual | 4 Gal/min | 3600 psi | +250 °F | -30 °F | N/A | Nitrile | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 0.29 lb | Screw in cartridge valve | Solenoid operated, Manually operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 23-27 lb-ft | 3600 psi | Push and Twist | 50 ms | 7-10 Nm | ||
| DSL084BTV | Backordered | Backordered | $109.19/each | EA | Fluorocarbon | 3600 PSI, 250 BAR | Electrical, Manual | N/A | 4 GAL/MIN, 15 L/MIN | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Hydraulic Systems Division | -26 to +204 °C | 4 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical, Manual | 15 L/min | 3600 psi | +204 °C | -15 °F | N/A | Fluorocarbon | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 0.29 lb | Screw in cartridge valve | Solenoid operated, Manually operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 23-27 lb-ft | 250 bar | Push and Twist | 50 ms | 7-10 Nm | ||
| DSL084BV | Backordered | Backordered | $68.73/each | EA | Fluorocarbon | 3600 PSI, 250 BAR | Electrical | N/A | 4 GAL/MIN, 15 L/MIN | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | Hydraulic Systems Division | -15 to +400 °F | 4 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 15 L/min | 3600 psi | +400 °F | -26 °C | N/A | Fluorocarbon | 3-2, 4-1 De-Energized, 2-1, 3-4 Energized | 0.29 lb | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 23-27 lb-ft | 250 bar | N/A | 50 ms | 7-10 Nm | ||
| DSL084E1 | Backordered | Backordered | $70.25/each | EA | D-Ring (Standard) | 3600 PSI, 250 BAR | Electrical | N/A | 4 GAL/MIN, 15 L/MIN | All ports blocked De-Energized, 2-1, 3-4 Energized | Hydraulic Systems Division | -35 to +200 °F | 15 L/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 4 Gal/min | 3600 psi | +200 °F | -37 °C | N/A | D-Ring (Standard) | All ports blocked De-Energized, 2-1, 3-4 Energized | 0.29 lb | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 31-37 Nm | 250 bar | N/A | 50 ms | 7-10 Nm | ||
| DSL084E1V | Backordered | Backordered | $76.13/each | EA | Fluorocarbon | 3600 PSI, 250 BAR | Electrical | N/A | 4 GAL/MIN, 15 L/MIN | All ports blocked De-Energized, 2-1, 3-4 Energized | Hydraulic Systems Division | -26 to +204 °C | 4 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 4 Gal/min | 3600 psi | +400 °F | -15 °F | N/A | Fluorocarbon | All ports blocked De-Energized, 2-1, 3-4 Energized | 0.29 lb | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 31-37 Nm | 250 bar | N/A | 50 ms | 7-10 Nm | ||
| DSL084M | Backordered | Backordered | $73.08/each | EA | D-Ring (Standard) | 3600 PSI, 250 BAR | Electrical | N/A | 4 GAL/MIN, 15 L/MIN | 2-1, 3-4 De-Energized, All ports blocked Energized | Hydraulic Systems Division | -37 to +93 °C | 4 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 4 Gal/min | 250 bar | +93 °C | -35 °F | N/A | D-Ring (Standard) | 2-1, 3-4 De-Energized, All ports blocked Energized | 0.29 lb | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 31-37 Nm | 250 bar | N/A | 50 ms | 5-7 lb-ft | ||
| DSL084N | Backordered | Backordered | $73.08/each | EA | D-Ring (Standard) | 3600 PSI, 250 BAR | Electrical | N/A | 3 GAL/MIN, 11 L/MIN | All ports blocked De-Energized, 3-2, 4-1 Energized | Hydraulic Systems Division | -35 to +200 °F | 3 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 3 Gal/min | 250 bar | +93 °C | -35 °F | N/A | D-Ring (Standard) | All ports blocked De-Energized, 3-2, 4-1 Energized | 0.29 lb | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 23-27 lb-ft | 250 bar | N/A | 50 ms | 5-7 lb-ft | ||
| DSL084NP | Backordered | Backordered | $113.32/each | EA | D-Ring (Standard) | 3600 PSI, 250 BAR | Electrical, Manual | N/A | 3 GAL/MIN, 11 L/MIN | All ports blocked De-Energized, 3-2, 4-1 Energized | Hydraulic Systems Division | -35 to +200 °F | 3 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical, Manual | 11 L/min | 3600 psi | +200 °F | -37 °C | N/A | D-Ring (Standard) | All ports blocked De-Energized, 3-2, 4-1 Energized | 0.29 lb | Screw in cartridge valve | Solenoid operated, Manually operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 31-37 Nm | 3600 psi | Pull and Release | 50 ms | 7-10 Nm | ||
| DSL084NV | Backordered | Backordered | $78.52/each | EA | Fluorocarbon | 3600 PSI, 250 BAR | Electrical | N/A | 3 GAL/MIN, 11 L/MIN | All ports blocked De-Energized, 3-2, 4-1 Energized | Hydraulic Systems Division | -15 to +400 °F | 3 Gal/min | 85% of rated voltage at 72°F (20°C) min | Electrical | 3 Gal/min | 250 bar | +204 °C | -15 °F | N/A | Fluorocarbon | All ports blocked De-Energized, 3-2, 4-1 Energized | 0.29 lb | Screw in cartridge valve | Solenoid operated | ISO 4406 18/16/13, SAE Class 4 | N/A | Mineral-based or synthetic hydraulic fluids | 4-way | 1/2" Super Coil | 45-2000 SSU (6 to 420 cSt) | 160 @ 3600 PSI (250 BAR) cm3/min | C08-4 | All parts steel. All operating parts hardened steel | 23-27 lb-ft | 250 bar | N/A | 50 ms | 5-7 lb-ft |
